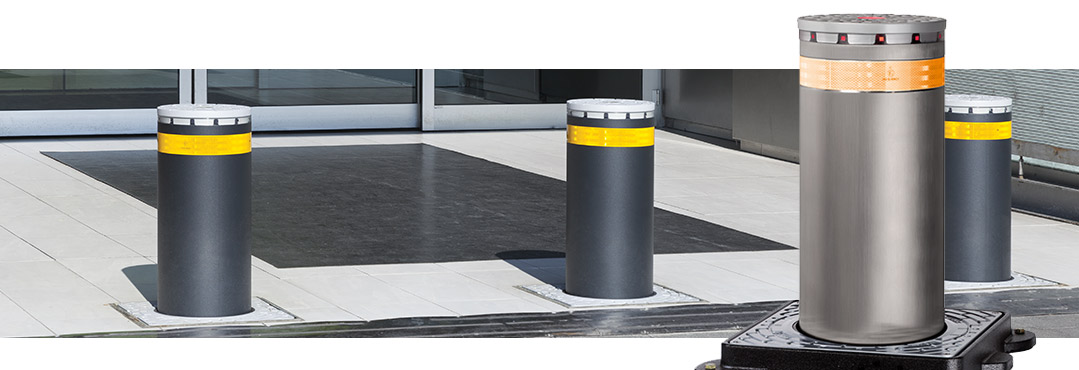

J SERIES TRAFFIC BOLLARD

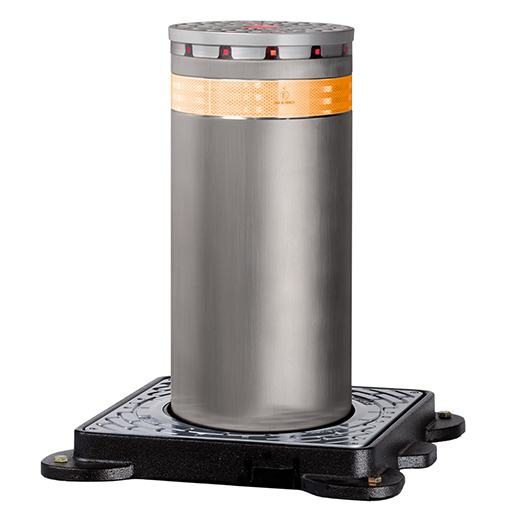

An automatic bollard for intensive use easily installed and maintained offering excellent lifetime cost-efficiency. The drive unit is mounted within the cylinder; even the basic bollard comes with 12 built-in flashing LEDs, buzzer, emergency release and mechanical release.

Foundation boxes are unique in that they are sectional, with a standard descent time of 3.5 seconds, and a rapid setting allowing a decent time of just 1.2 seconds. The bollard also boasts a gentle stop function to grant soft stop on limit switches. There is the ability to replace existing FAAC City bollards by installing the J Series bollard in the existing pit. The bollard can withstand traffic coming from all directions.

The bollard has two fast connectors for low- and high-voltage for rapid connection/disconnection. In addition, limit switches for both the raised and lowered positions mean that the status of the bollard is known at any time. The FAAC J275 Fixed traffic bollard does not require either invasive laying operations or electric wiring.

It is therefore suitable for permanent installations in order to define pedestrian areas, or for mixed installations together with other automatic or semi-automatic bollards.

Model J275 HA H600 J275 HA V2 H600 INOX J275 HA V2 H800 J275HA V2 H800 INOX
Movement Hydraulic operator Hydraulic operator Hydraulic operator Hydraulic operator
Cylinder height 600mm 600mm 800mm 800mm
Cylinder diameter 275mm 275mm 275mm 275mm
Cylinder material Steel S235JR EN 10219 (thick. 7mm) AISI 316L satin finished (thick. 6mm) Steel S235JR EN 10219 (thick. 7mm) AISI 316L satin finished (thick. 6mm)
Cylinder material Cataphoresis and polyester powder painted RAL 7021 metallic dark grey Satin finished Cataphoresis and polyester powder painted RAL 7021 metallic dark grey Satin finished
Cylinder material head RAL 9006 Aluminium RAL 9006 Aluminium RAL 9006 Aluminium RAL 9006 Aluminium
Rising time 5 seconds 5 seconds 7 seconds 7 seconds
Lowering time (standard) 3.5 seconds 3.5 seconds 4.5 seconds 4.5 seconds
Lowering time (rapid) YES (selectable) YES (selectable) YES (selectable) YES (selectable)
Emergency lowering time 1.2 seconds 1.2 seconds 1.5 seconds 1.5 seconds
Obstacle detection on device in rising YES YES YES YES
Release device YES YES YES YES
Absorption 230V - 50 (60Hz) 230V - 50 (60Hz) 230V - 50 (60Hz) 230V - 50 (60Hz)
Max power 220 W 220 W 220 W 220 W
Protection class IP67 IP67 IP67 IP67
Recommended use Intensive use (traffic) Intensive use (traffic) Intensive use (traffic) Intensive use (traffic)
Reflecting strip height 55mm 55mm 55mm 55mm
Standard reflecting strip colour Orange Orange Orange Orange
Impact resistance 38000 J 67000 J 38000 J 67000 J
Crash resistance 128000 J 207000 J 128000 J 207000 J
Total weight 167 Kg 167 Kg 195 Kg 195 Kg
Pit weight 55 Kg 55 Kg 65 Kg 65 Kg
Bollard weight 112 Kg 112 Kg 130 Kg 130 Kg
Operating ambient temperature -15/+55oC -15/+55oC -15/+55oC -15/+55oC
Operating ambient temperature with heater -25/+55oC -25/+55oC -25/+55oC -25/+55oC
Pit to wall in with modular cylindrical profile 560 x 560 x 950 mm 560 x 560 x 950 mm 560 x 560 x 1.220 mm 560 x 560 x 1.220 mm
Excavation dimensions 1.000 x 1.000 x 1.250 mm 1.000 x 1.000 x 1.250 mm 1.000 x 1.000 x 1.540 mm 1.000 x 1.000 x 1.540 mm
Connection cable Standard 16+1 conductor cables, minimum sec􀆟 on 1.5mm (not supplied) Standard 16+1 conductor cables, minimum sec􀆟 on 1.5mm (not supplied) Standard 16+1 conductor cables, minimum sec􀆟 on 1.5mm (not supplied) Standard 16+1 conductor cables, minimum sec􀆟 on 1.5mm (not supplied)
Cable max. length 50m 50m 50m 50m
