NEW AUTOMATIC HIGH SECURITY AND ANTI-TERROR BOLLARD – J 355HA M50

PAS68:2013 CERTIFIED

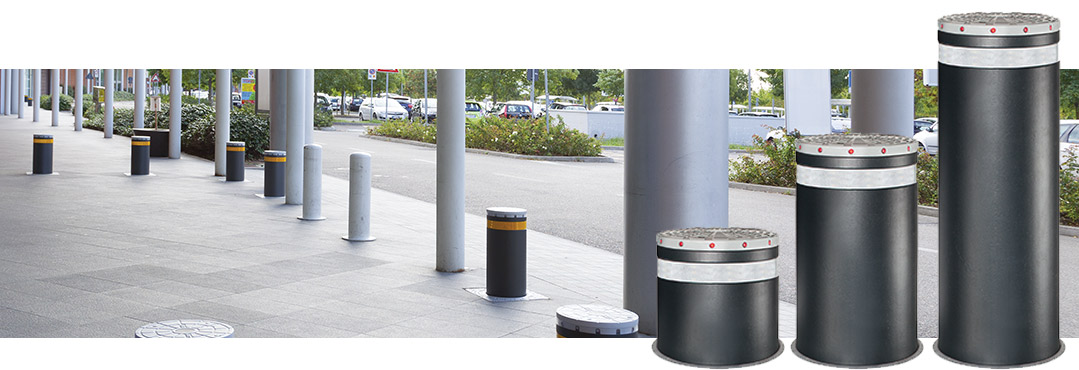

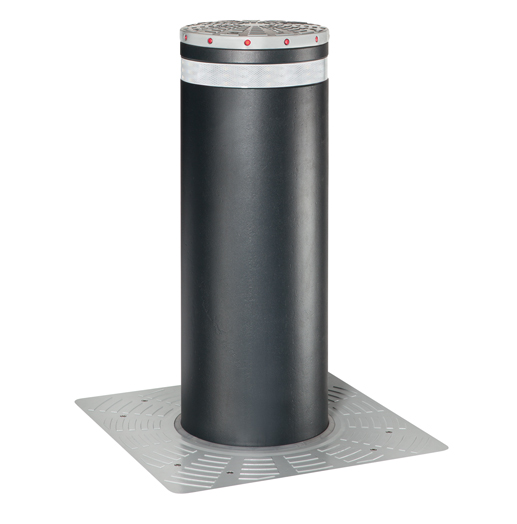

J355HA-M50 is the new FAAC crash rated bollard conceived for perimeter protection applications. It has been specifically
designed for the protection of sensitive areas.

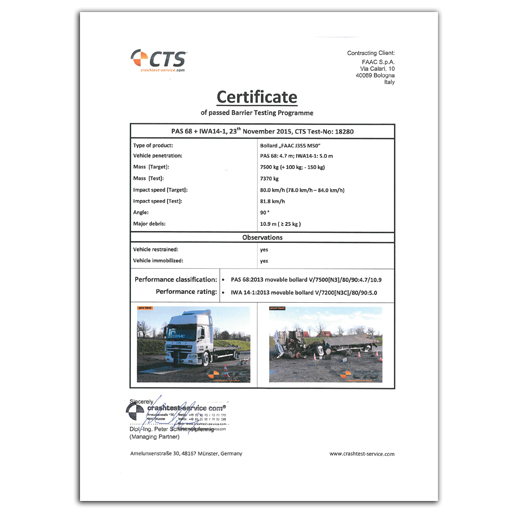

The J355 M50 bollards have been tested in accordance with PAS 68:2013 impact test specifications for vehicle security barrier
systems and IWA 14-1:2013 – Vehicle security barriers – Part 1: Performance requirement, vehicle impact test method and
performance rating.

J355 HA M50 can stop a 7500Kg truck running at a speed of about 80km/hour (50Mph)

The bollard can be used for a variety of applications, such as value protection and to allow access to a sensitive area as
follows:

• Embassies,
• Consulates
• Public offices
• Banks etc.

Advantages
• The bollard has an all in one concept, a built-in hydraulic drive unit
• Emergency fast operation circuit (EFO)- option-for rapid movement
• Upraised position kept by hydraulic locking, even in case of power failure
• No pipes with oil under pressure underground ducts to avoid leakages or failure risks
• Built-in LED lights
• Stainless steel internal fixing frame
• Hydraulic unit rated IP67

Fixed bollard option
Excavation dimensions are:
4.000 x 2.300 x 350mm
Total weight is 680kg

Model J355 HA M50 J355 HA M50 EFO J355 HA M50 INOX J355 HA M50 EFO INOX
Type of operator Hydraulic operator Hydraulic operator Hydraulic operator Hydraulic operator
Cylinder height from ground 1,200mm 1,200mm 1,200mm 1,200mm
Cylinder diameter 355 mm 355 mm 355 mm 355 mm
Cylinder material Steel S355JR EN10210 (16mm thick) Steel S355JR EN10210 (16mm thick) Steel S355JR EN10210 (16mm thick) Steel S355JR EN10210 (16mm thick)
Cylinder treatment Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 Cataphoresis and polyester powder paint, dark grey metallised RAL 7021 AISI 316L satin fi nishing AISI 316L satin fi nishing
Rising time ~6 s (*) ~6 s (*) ~6 s (*) ~6 s (*)
Quick rise device NO YES (EFO) NO YES (EFO)
Emergency rising time - ~2s - ~2s
Descent time ~3 s (*) ~3 s ~3 s (*) ~3 s
Release device optional optional optional optional
Power supply voltage 220-240V ~ 50/60Hz 220-240V ~ 50/60Hz 220-240V ~ 50/60Hz 220-240V ~ 50/60Hz
Max. power 3,9 Kw (*) 3,9 Kw (*) 3,9 Kw (*) 3,9 Kw (*)
Hydraulic pump unit protection class IP67 IP67 IP67 IP67
Type of use Use in security areas Use in security areas Use in security areas Use in security areas
Max expressed force 9.000 N 9.000 N 9.000 N 9.000 N
Impact resistance - - - -
Break in resistance 1.852.000 J 1.852.000 J 1.852.000 J 1.852.000 J
Pit weight 235 Kg 235 Kg 235 Kg 235 Kg
Traffic bollard weight 850 Kg 860 Kg 850 Kg 860 Kg
Total weight 1085 kg 1095 kg 1085 kg 1095 kg
Operating ambient temperature -15°C / +55°C -15°C / +55°C -15°C / +55°C -15°C / +55°C
Operating ambient temperature with heater -40°C / +55°C -40°C / +55°C -40°C / +55°C -40°C / +55°C
Walled in pit with cylinder profi le (LxWxH) 570 x 770 x 1.730 mm 570 x 770 x 1.730 mm 570 x 770 x 1.730 mm 570 x 770 x 1.730 mm
Excavation dimensions (LxWxH) 3.100 x 1.600 x 1.850 mm 3.100 x 1.600 x 1.850 mm 3.100 x 1.600 x 1.850 mm 3.100 x 1.600 x 1.850 mm
Loading class (EN 124) C25 (25t) C25 (25t) C25 (25t) C25 (25t)

(*) data referred to 230V~ 50Hz
