THE POWERLIFTER OF
INDUSTRIAL AUTOMATION.

RSO Roller-shutter Operators.

RSO5 – 500kg INDUSTRIAL ROLLER-SHUTTER OPERATOR

The CENTURION Industrial RSO range has been designed to safely automate extremely heavy roller-shutter doors such as entrances to factories and loading bays. Each model is equipped with a heavy-duty electric motor that, coupled with a powerful gearbox, delivers maximum lifting force. In addition, a convenient manual override facility comprising a five metre chain ensures that the door can be operated even in the event of a power failure. A three-button wall pendant allows the operator to not only open and close the door but also safely stop it should an emergency situation arise. The RSO5 is a feature-rich roller-shutter operator equipped with a multi-faceted interface board for connecting ancilliary and safety devices. A revolutionary dual brake system ensures that the RSO5 stops shutters safely and reliably all of the time.
MAIN FEATURES:
  • Robust construction
    Two words: Oblique gear. This proven transmission type, coupled with an AC motor that packs plenty of clout, makes for an industrial roller-shutter operator that makes quick work of even the heaviest of shutters.
  • Fail-safe manual operation
    What is strength without reliability? In the unlikely event that something goes wrong, the RSO is committed to keeping you in business, with not one but two modes of manual operation. All RSO models come standard with a five metre hand chain, ensuring that the shutter can be easily operated even from ground level, as well as a manual-release pin inside the gearbox that can override the mechanical brake.
  • Easy to commission
    The strength of a good industrial operator lies not in its complexity, but in its…well…strength. The RSO range of operators is exceptionally easy to set up, and commissioning can be done in mere minutes thanks to a user-friendly cam system.
  • Reliable position control
    Two mechanical limit switches are the heroes that tame the beast, making sure that the shutter stops in the open and closed positions, every time.
  • Rock-solid mounting system
    One can imagine that it takes quite a lot of muscle to keep such a colossus suspended several meters in the air – fortunately, CENTURION’s custom-made RSO mounting plates are more than up to the challenge, and includes vertical slots for easy adjustment of the operator.

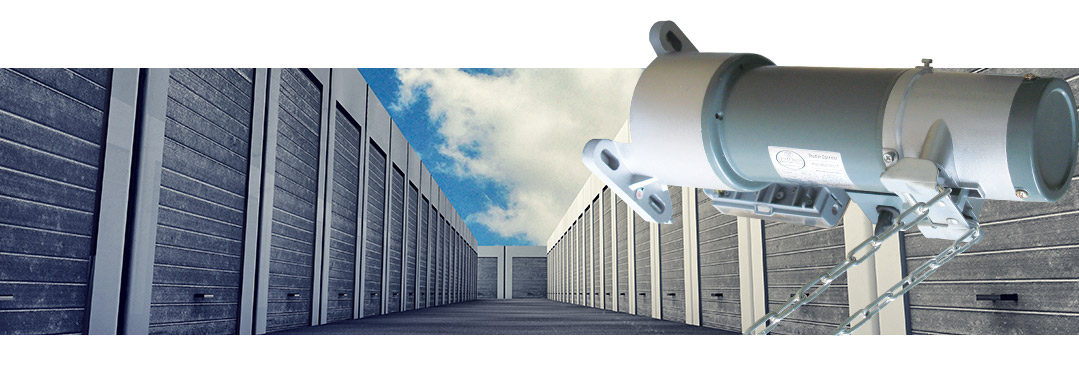

RSO5DC – 500kg INDUSTRIAL ROLLER-SHUTTER OPERATOR WITH BATTERY BACKUP

The CENTURION Industrial RSO range has been designed to safely automate extremely heavy roller-shutter doors such as entrances to factories and loading bays. Each model is equipped with a heavy-duty electric motor that, coupled with a powerful gearbox, delivers maximum lifting force. In addition, a convenient manual override facility comprising a 5m chain ensures that the door can be operated even in the event of a power failure. The RSO5DC incorporates an intelligent logic controller complete with user-friendly LCD interface for easy setup. Added to this, two 7Ah batteries provide reliable battery backup, ensuring that the RSO5DC remains in operation even in the event of a lengthy power outage. The controller also makes provision for the connection of ancillary devices such as infrared safety beams, proximity readers and keypads.
MAIN FEATURES:
  • Battery backup
    A 24V battery with rapid charger ensures that come low voltages, power spikes or failures, you can always get in or out!
  • Open it the way you like it…
    Rapid opening but a more tempered closing just in case a loved one or a truckload full of valuable goods is in the way, that’s the sort of sophistication in motor control you can expect from the RSO5DC industrial roller-shutter operator. Added to this, you can vary the acceleration and deceleration of your roller shutter and make it move so smoothly it will do so for many years to come.
  • It’s got it all
    What a pleasure to click through an almost endless list of really useful features – from multiple Modes of Operation, shutter operating parameters, Pillar Light control with pre-flash, Alarm functions, Positive Close Mode and Real Time Clock and Calendar to enable time based features – to help diagnostic feedback.
  • Operate wirelessly, thanks to CENTURION
    Besides its code-hopping technology offering the highest level remote control security, this multichannel and multi-user CENTURION onboard receiver allows for a multi-button remote to operate any combination of the system inputs, such as trigger, Holiday Lockout, etc.
  • Reliable position control
    Two mechanical limit switches are the heroes that tame the beast, making sure that the shutter stops in the open and closed positions, every time.
  • Rock-solid mounting system
    One can imagine that it takes quite a lot of muscle to keep such a colossus suspended several meters in the air – fortunately, CENTURION’s custom-made RSO mounting plates are more than up to the challenge, and includes vertical slots for easy adjustment of the operator.

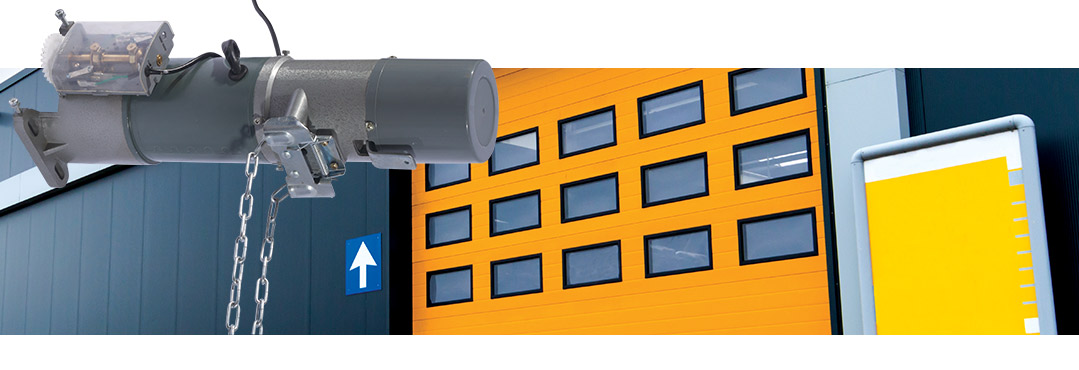

RSO5R3P – 500kg INDUSTRIAL ROLLER-SHUTTER OPERATOR

The CENTURION Industrial RSO range has been designed to safely automate extremely heavy roller-shutter doors such as entrances to factories and loading bays. Each model is equipped with a heavy-duty electric motor that, coupled with a powerful gearbox , delivers maximum lifting force. In addition, a convenient manual override facility comprising a five metre chain ensures that the door can be operated even in the event of a power failure. A three-button wall pendant allows the operator to not only open and close the door but also safely stop it should an emergency situation arise. The RSO5R3P is a powerful three-phase, 380V operator capable of delivering greater starting thrust than single-phase operators, and also boasts an increased duty cycle.
MAIN FEATURES:
  • It’s got the POWER!
    You’ll find the perfect union of simplicity and raw, unadulterated power in the RSO5R3P industrial roller-shutter operator . This three-phase model provides the same reliable automation solution as the RSO5R – but with the added might of 380V behind it! That means an increased duty cycle and higher starting thrust – the RSO5R3P has the OOMPH-factor down to an art!
  • Robust construction
    Two words: Oblique gear. This proven transmission type, coupled with an AC motor that packs plenty of clout, makes for an industrial roller-shutter operator that makes quick work of even the heaviest of shutters.
  • Fail-safe manual operation
    What is strength without reliability? In the unlikely event that something goes wrong, the RSO is committed to keeping you in business, with not one but two modes of manual operation. All RSO models come standard with a five metre hand chain, ensuring that the shutter can be easily operated even from ground level, as well as a manual-release pin inside the gear box that can override the mechanical brake.
  • Easy to commission
    The strength of a good industrial operator lies not in its complexity, but in its…you guessed it!…strength. The CENTURION RSO range of operators is exceptionally easy to set up, and commissioning can be done in mere minutes thanks to a user-friendly cam system.
  • Reliable position control
    Two mechanical limit switches are the heroes that tame the beast, making sure that the shutter stops in the open and closed positions, every time.
  • Rock-solid mounting system
    One can imagine that it takes quite a lot of muscle to keep such a colossus suspended several meters in the air – fortunately, CENTURION’s custom-made RSO mounting plates are more than up to the challenge, and includes vertical slots for easy adjustment of the operator.

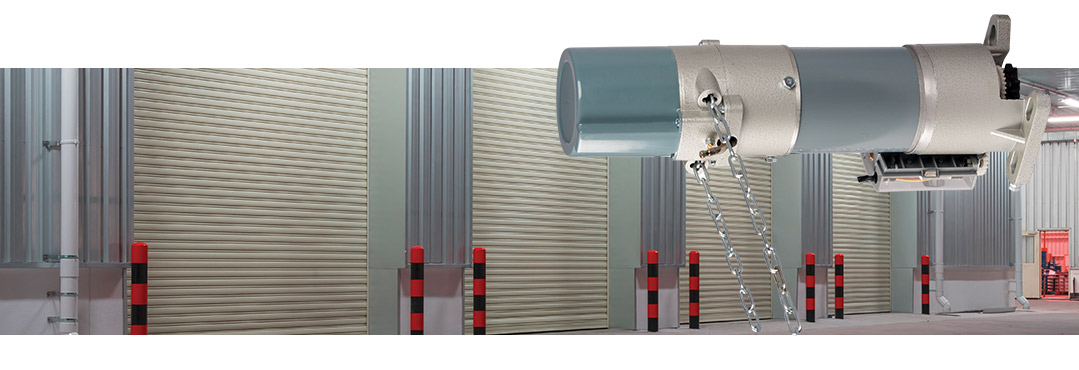

RSO5R – 500kg INDUSTRIAL ROLLER-SHUTTER OPERATOR

The CENTURION Industrial RSO range has been designed to safely automate extremely heavy roller-shutter doors such as entrances to factories and loading bays. Each model is equipped with a heavy-duty electric motor that, coupled with a powerful gearbox, delivers maximum lifting force. In addition, a convenient manual override facility comprising a five metre chain ensures that the door can be operated even in the event of a power failure. A three-button wall pendant allows the operator to not only open and close the door but
also safely stop it should an emergency situation arise. Even the baby of the lot, the RSO5R industrial roller-shutter operator, has enough brawn in its gearbox to automate shutters weighing up to 500kg, and makes for powerful, cost-effective industrial automation.
MAIN FEATURES:
  • Robust construction
    Two words: Oblique gear. This proven transmission type, coupled with an AC motor that packs plenty of clout, makes for an industrial roller-shutter operator that makes quick work of even the heaviest of shutters.
  • Fail-safe manual operation
    What is strength without reliability? In the unlikely event that something goes wrong, the RSO is committed to keeping you in business, with not one but two modes of manual operation. All RSO models come standard with a five metre hand chain, ensuring that the shutter can be easily operated even from ground level, as well as a manual-release pin inside the gearbox that can override the mechanical brake.
  • Easy to commission
    The strength of a good industrial operator lies not in its complexity, but in its…well…strength. The RSO range of operators is exceptionally easy to set up, and commissioning can be done in mere minutes thanks to a user-friendly cam system.
  • Reliable position control
    Two mechanical limit switches are the heroes that tame the beast, making sure that the shutter stops in the open and closed positions, every time.
  • Rock-solid mounting system
    One can imagine that it takes quite a lot of muscle to keep such a colossus suspended several meters in the air – fortunately, CENTURION’s custom-made RSO mounting plates are more than up to the challenge, and includes vertical slots for easy adjustment of the operator.

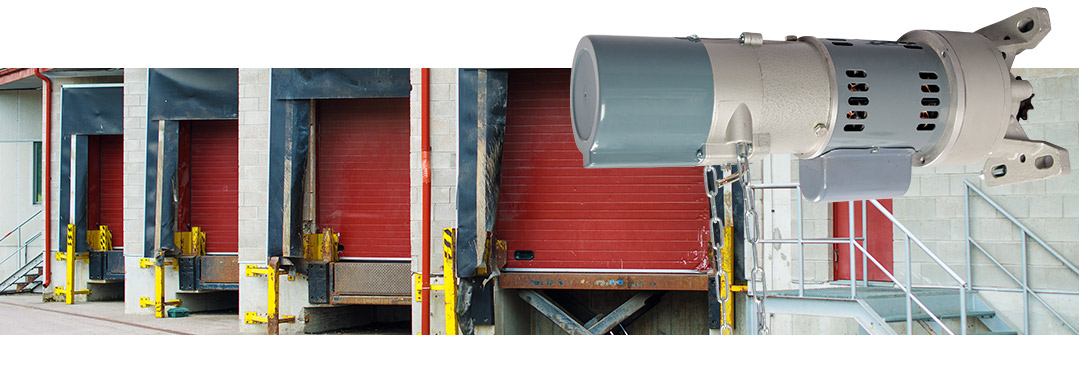

RSO5RE – 500kg INDUSTRIAL ROLLER-SHUTTER OPERATOR

The CENTURION Industrial RSO range has been designed to safely automate extremely heavy roller-shutter doors such as entrances to factories and loading bays. Each model is equipped with a heavy-duty electric motor that, coupled with a powerful gearbox, delivers maximum lifting force. In addition, a convenient manual override facility comprising a five metre chain ensures that the door can be operated even in the event of a power failure. A three-button wall pendant allows the operator to not only open and close the door but also safely stop it should an emergency situation arise. The RSO5RE industrial roller-shutter operator is an endurance model ideal for high-volume applications. The vastly improved duty cycle and high number of daily operations are made possible by a ventilated planetary gearbox.
MAIN FEATURES:
  • Never. Say. Die.
    Take one part gargantuan lifting force and add a never-say-die attitude , mix in a sturdy cast-iron gearbox and what you’ve got is the recipe for the RSO Endurance model, the RSO5RE. With an impressive duty cycle and capable of performing in excess of 400 operations per day thanks to the remarkably durable double-layer planetary gear design, the RSO5RE is the solution for high-volume applications.
  • Robust construction
    Two words: Oblique gear. This proven transmission type, coupled with an AC motor that packs plenty of clout, makes for an industrial roller-shutter operator that makes quick work of even the heaviest of shutters.
  • Fail-safe manual operation
    What is strength without reliability? In the unlikely event that something goes wrong, the RSO is committed to keeping you in business, with not one but two modes of manual operation. All RSO models come standard with a five metre hand chain, ensuring that the shutter can be easily operated even from ground level, as well as a manual-release pin inside the gearbox that can override the mechanical brake.
  • Easy to commission
    The strength of a good industrial operator lies not in its complexity, but in its…well…strength. The RSO range of operators is exceptionally easy to set up, and commissioning can be done in mere minutes thanks to a user-friendly cam system.
  • Reliable position control
    Two mechanical limit switches are the heroes that tame the beast, making sure that the shutter stops in the open and closed positions, every time.
  • Rock-solid mounting system
    One can imagine that it takes quite a lot of muscle to keep such a colossus suspended several meters in the air – fortunately, CENTURION’s custom-made RSO mounting plates are more than up to the challenge, and includes vertical slots for easy adjustment of the operator.

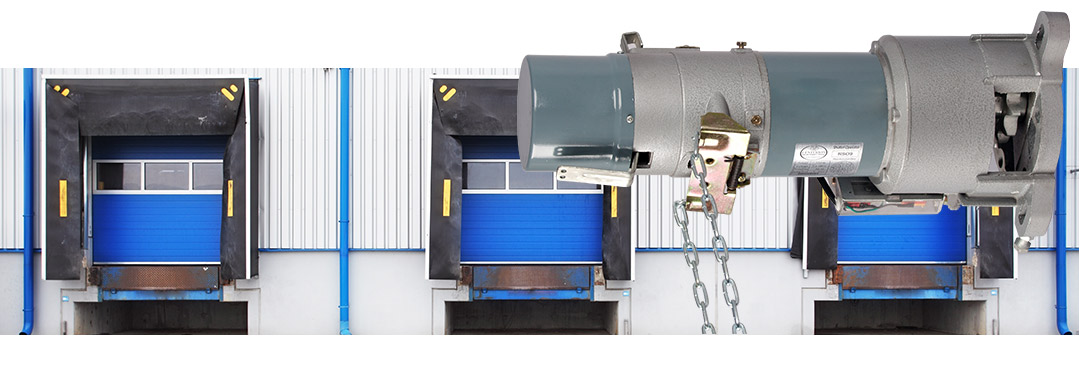

RSO9 – 900kg INDUSTRIAL ROLLER-SHUTTER OPERATOR

The CENTURION Industrial RSO range has been designed to safely automate extremely heavy roller-shutter doors such as entrances to factories and loading bays. Each model is equipped with a heavy-duty electric motor that, coupled with a powerful gearbox, delivers maximum lifting force. In addition, a convenient manual override facility comprising a five metre chain ensures that the door can be operated even in the event of a power failure. A three-button wall pendant allows the operator to not only open and close the door but also safely stop it should an emergency situation arise. The RSO9 is a heavy duty roller-shutter operator utilising a 380V, three-phase power supply enabling it to lift very heavy roller-shutter doors weighing up to 900 kilograms.
MAIN FEATURES:
  • Heavy lifting is its business…and business is good
    With a whopping 550W of power and able to lift roller-shutters weighing up to 900kg, is the RSO9 industrial roller-shutter operator. This beast, which receives an extra dose of power via a three-phase supply, provides all the muscle you need to automate exceptionally heavy shutters such as the entrances to airplane hangars.
  • Robust construction
    Two words: Oblique gear. This proven transmission type, coupled with an AC motor that packs plenty of clout, makes for an industrial roller-shutter operator that makes quick work of even the heaviest of shutters.
  • Fail-safe manual operation
    What is strength without reliability? In the unlikely event that something goes wrong, the RSO is committed to keeping you in business, with not one but two modes of manual operation. All RSO models come standard with a five metre hand chain, ensuring that the shutter can be easily operated even from ground level, as well as a manual-release pin inside the gearbox that can override the mechanical brake.
  • Easy to commission
    The strength of a good industrial operator lies not in its complexity, but in its…well…strength. The RSO range of operators is exceptionally easy to set up, and commissioning can be done in mere minutes thanks to a user-friendly cam system.
  • Reliable position control
    Two mechanical limit switches are the heroes that tame the beast, making sure that the shutter stops in the open and closed positions, every time.
  • Rock-solid mounting system
    One can imagine that it takes quite a lot of muscle to keep such a colossus suspended several meters in the air – fortunately, CENTURION’s custom-made RSO mounting plates are more than up to the challenge, and includes vertical slots for easy adjustment of the operator.
RSO MODEL RANGE TECHNICAL DATA:
RSO5R RSO5R3P RSO5RE RSO5 RSO5DC RSO9
Input Voltage 220 - 240V AC 380V AC (three phase) 220 - 240V AC 220 - 240V AC 220 - 240V AC 380V AC (three phase)
Motor Voltage 230V AC 380V AC 230V AC 230V AC 24V DC 380V AC
Motor Power Supply NA NA NA NA Battery driven - 2A charger NA
Duty Cycle 20% 30% 40% 20% 35% 30%
Daily Operations - Max 200 320 430 200 350 320
Power (W) 360W 360W 375W 360W 220W 550W
Motor Speed 1780rpm 1780rpm 1780rpm 1780rpm 1440rpm 1780rpm
Door Travel Speed 140mm/sec 100mm/sec 74mm/sec 100mm/sec 130mm/sec 45mm/sec
Current 3.5A 1Ø 1.5 - 2A 3Ø 3A 1Ø 3.7A 1Ø 4.6A 1Ø 2.2A 3Ø
Time Rating 7 min 10 min 30 min 10 min 7-8 min 8 min
Temperature Protector 95°C 70°C 125°C 105°C 70°C 115°C
Output Shaft Rotation 53rpm 35rpm 28rpm 35rpm 50rpm 17rpm
Gear Ratio 34:1 55:1 64:1 51:1 55:1 105:1
Gear Transmission Single-row oblique gear Single-row oblique gear Double-layer planetary gear Single-row oblique gear Double-layer oblique gear Double-layer oblique gear
Gear Box Material Alluminium Alluminium Cast-iron Alluminium Alluminium Alluminium
Drive Type Quick coupling/chain/gear-driven Chain-driven Chain-driven Quick coupling/chain/gear-driven Chain-driven Chain-driven
Sprocket 9T 9T 9T 9T 9T 10T
Chain 5/8 inch 5/8 inch 5/8 inch 5/8 inch 5/8 inch 1 inch
Length 540mm 540mm 530mm 570mm 410mm 600mm
Net Weight 12.7kg 12.8kg 20.2kg 18.8kg 9.64kg 22.1kg
Gross Weight 13.5kg 13.5kg 21.0kg 13.6kg 10.4kg 23.0kg
Packing Dimentions 546mm X 270mm X 200mm 570mm X 265mm X 210mm 665mm X 260mm X 200mm 546mm X 270mm X 200mm 570mm X 265mm X 210mm 600mm X 345mm X 245mm

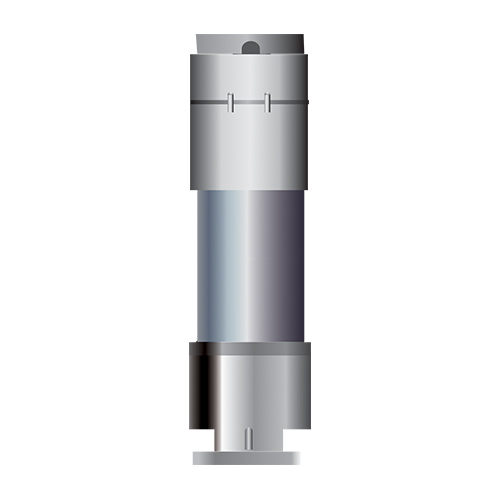

MINIMUM CLEARANCE REQUIRED FOR INSTALLATION:
MINIMUM 'A' DIMENSIONS
RSO5R 590mm
RSO5R3P 590mm
RSO5RE 580mm
RSO5 620mm
RSO5DC 460mm
RSO9 650mm
The ‘A’ dimension refers to the minimum amount of space needed to install each operator, i.e. the distance from the side of the shutter box to the first obstruction (e.g. a pillar).
COMPARE RSO MODELS:
RSO5R RSO5R3P RSO5RE RSO5 RSO5DC RSO9
Max. Shutter Weight 500kg 500kg 500kg 500kg 500kg 900kg
Power Source Type Single-phase Three-phase Single-phase Single-phase Single-phase Three-phase
Battery Backup - - - - Yes -
Integrated Wall-pendant Yes Yes Yes Yes D-Series Controller Yes
LCD Interface - - - - Yes -
Manual Override Facility Yes Yes Yes Yes Yes Yes
Hand Chain Yes Yes Yes Yes Yes Yes
Safety Beam Input - - - Yes Yes -
Input for Ancillary Devices, e.g. Keypads, Pushbuttons, etc. - - - Yes Yes -
Courtesy Light Input - - - Yes Yes -
Autoclose - - - Yes Yes -
Local Test Button - - - Yes Yes -
Multiple Operating Modes - - - Yes Yes -
ChronoGuard - - - - Yes -
Onboard Receiver - - - - Yes -
Beam Alarm Modes - - - - Yes -
Adjustable Speed - - - - Yes -
Dual Brake System - - - Yes - -
