FAAC A1000 AUTOMATIC SLIDING DOOR
Thin and elegant
Thanks to its compact dimensions, the FAAC A1000 system can be adapted to suit virtually any type of architectural environment, even in limited space conditions. All the most innovative technical features in just a few centimetres. For the utmost versatility of use, the A1000 Series can be adapted to sliding doors with single leaves with a maximum weight of 110 kg or with double leaves with a maximum weight of 70 kg per leaf.
Excellent logic in real time

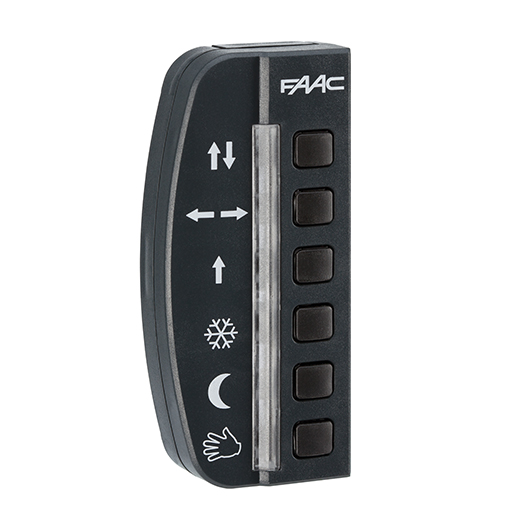

A microprocessor verifies in real-time all door activities and guarantees intelligent control. The operation logic can be selected by means of a functions keypad.
The A1000 Series automatically programs opening and closing force and speed according to the friction and the door weight in conformity with the relevant international safety standards. An A1000 system also guarantees considerable energy savings as with regards to airconditioning and the total removal of architectural barriers.
Reliable and always sliding
Designed to operate at best on each occasion and in every environment, the A1000 system is automatically reliable, without limits on the frequency of use. In the event of a power cut, backup batteries (optional) with charge control guarantee 100% operation for up to thirty minutes.
In the event of an obstacle being detected, the door reopens immediately. On the next closing, it verifies at slow speed whether the obstacle is still present.
|Electric power supply||115/230 VAC - 50 (60) Hz|
|Power consumption||100 W|
|Frequency of use||100%|
|Drive unit||24V DC motor and encoder|
|Head profile length||VP x 2 + 100 mm|
|Load free opening adjustment||5 to 70 cm/s|
|Load free closing adjustment||5 to 70 cm/s|
|Partial opening adjustment||10% to 90% of total opening|
|Pause time adjustment||0 to 30 s|
|Night pause time adjustment||0 to 240 s|
|Photocells fail-safe||Standard (can be excluded)|
|Protection class||IP 23 (for indoor use only)|
|Environmental temperature||0 to 30 s|
