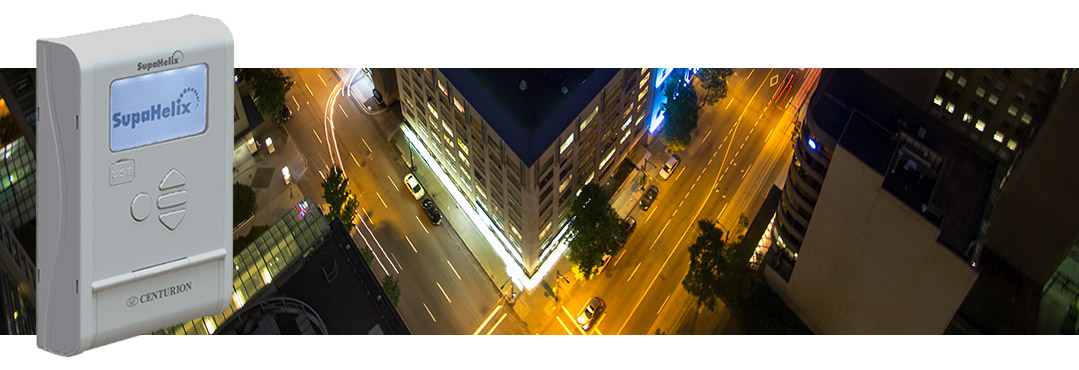

SUPAHELIX – ADVANCED ACCESS CONTROL SYSTEM
SupaHelix hasn’t just raised the bar in multi-unit access control – it’s changed the game completely. A high-security controller with an intuitive navigation interface that offers a multitude of features as well as event logging, makes for an access control system that delivers unmatched convenience, security, logging and administration.
MAIN FEATURES:
- 10 000 user capacity – perfect for high-density residential complexes.
- Large LCD screen and four-button navigation make setup child’s play.
- Robust, interference-free remote control learning.
- Transaction logging for ease of user activity and system diagnostics.
- Easy management of individual access – users can be selectively added or deleted within groups and sub-groups.
- USB port input for backup of system memory and bootloading.
- Three flexible input/output channels – can each be configured as timed, mom entary or latched.
- Removable connectors – for ease of setup and maintenance.
- SD card contains entire system’s data – makes for quick recovery and improves data security.
SUPAHELIX TECHNICAL DATA:
| DESCRIPTION | |
|---|---|
| Input Voltage | 10.5 - 30V DC |
| Standby Current | 12V: 100mA (110mA) 24V: 70mA (80mA) |
| Maximum Current | 12V: 270mA (500mA) 24V: 230mA (400mA) |
| Operating Temperature | -20°C - +70°C |
| Output Rating | Open collector - Maximum current 50mA per channel |
| Display | 2.4 inch 128 x 64 Transflective with backlight |
| Housing Material | ABS |
| Degree of Protection | IP50 |
FUNCTIONAL SPECIFICATIONS
| DESCRIPTION | |
|---|---|
| Memory Capacity | 10 000 individual buttons |
| Output Pulse Time Range | 0.5s - 9999s in 0.5s increments |
| Input Activation | Rising edge, falling edge, both |
| Input Filter | 0 - 9999s in 1s increments |
| Inputs/Outputs | Maximum 3 (selectable as any combination of open collector outputs and/or switch-to-negative inputs) |
