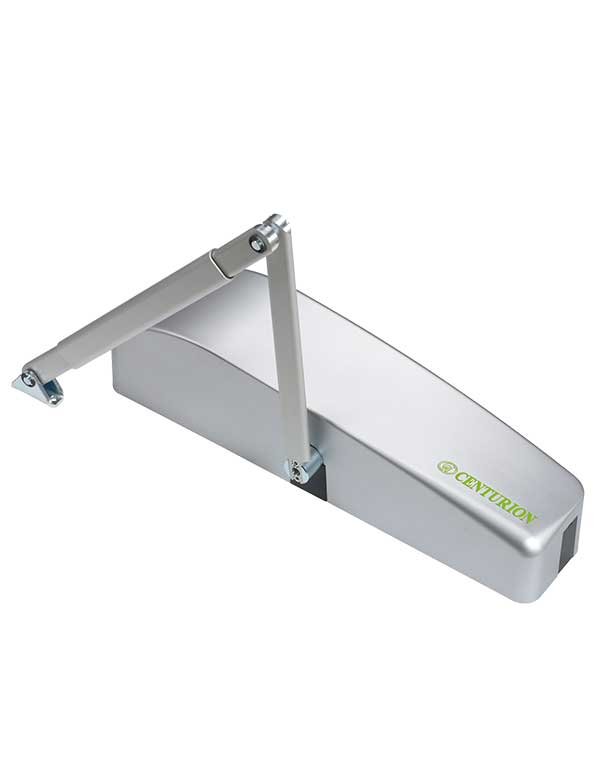

CENTURION 950N2 Swing Door Automation
Introducing next-level automation for swing doors with the CENTURION 950N2, an ultra-reliable and versatile automation system that prioritises ease of installation, safety, and seamless configuration. Built to support single and double-leaf doors, it’s the perfect solution for any high-traffic pedestrian entryway.
Application:
The CENTURION 950N2 swing door automation system is versatile and suitable for a wide range of applications, including:
- Internal and External Doors: The 950N2 can be installed on almost all types of internal and external doors, accommodating various architectural requirements
- Single and Double Entrances: It adapts to both single and double entrance configurations, providing flexibility in design and functionality
- Heavy and High-Traffic Doors: Designed to handle doors with leaf lengths from 700 to 1400mm and maximum weights between 286 and 367kg, the 950N2 is ideal for heavy doors and environments with continuous use
What Sets the CENTURION 950N2 Apart?
Versatile Installation
- Can be mounted on either side of the door for both push and pull applications.
- Designed for left or right-hand doors, ensuring adaptability for various settings.
- Offers mounting options on the architrave or directly onto the door structure, with a choice between a sleek anodised aluminium cover or a moulded ABS alternative.
Quiet and Smooth Operation
- Ensures quiet operation during door opening and closing, creating a pleasant user experience.
- Features a silent hold-open function for added convenience.
Real-Time Control and Monitoring
- The MPS processor board provides precise control over the operator’s activities, ensuring smooth and safe performance.
- An encoder continuously detects the door’s position for accurate and responsive operation
Master/Slave Configuration for Double-leaf Entrances
Easily set up dual 950N2 units in a master/slave arrangement, enabling synchronised operation for double-leaf doors as a single, cohesive system.
Enhanced Safety Standards
- Fully compliant with EN16005 European Safety Standards, providing obstacle detection and protection against crushing.
- Automatically reopens the door if an obstruction is detected, ensuring safety for all users.
Precision Programming
Program speed, force, and other critical settings based on door size, using intuitive trimmers to adjust opening speed, closing speed, and pause time for a fine-tuned installation.
Integration with Access Controls
Compatible with various access control devices like microwave radar, infrared sensors, photocells, and push-button controls, ensuring flexible configuration with existing security systems.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| TECHNICAL SPECIFICATIONS | 950N2 | |
|---|---|---|
| Power supply voltage | 220-240V AC~ - 50/60 Hz | |
| Max. Power | 100 W | |
| Use Frequency | 100 W | |
| Motor | Motor-powered at 24V | |
| Max. accessories load | 1A - 24V | |
| Electric lock power supply voltage | (N.O./N.C.) 24V / 500mA max | |
| Dimensions (LxHxD) | 575x60x70 mm | |
| Weight | 7Kg | |
| Operation in case of power cut | Manual push/pull opening | |
| Max Leaf opening angle | 100° to 125° | |
| Opening leaf time | 4 to 10 sec (adjustable) | |
| Closing leaf time | 4 to 10 sec (adjustable) | |
| Partial opening adjustment | Standard (adjustable) | |
| Pause time | 0 to 30 sec | |
| Night pause time | 0 to 90 sec | |
| Encoder | As standard | |
| Protection Sensor monitoring | As standard (may be excluded) | |
| Low energy movement | As standard (may be excluded) | |
| Operating ambient temperature | -20°c to +55°C | |
| Protection class | IP 23 (for internal use only) | |
| Compliance with regulations | EN16005; EN61000-6-2; EN61000-6-3 ; EN13849 |
