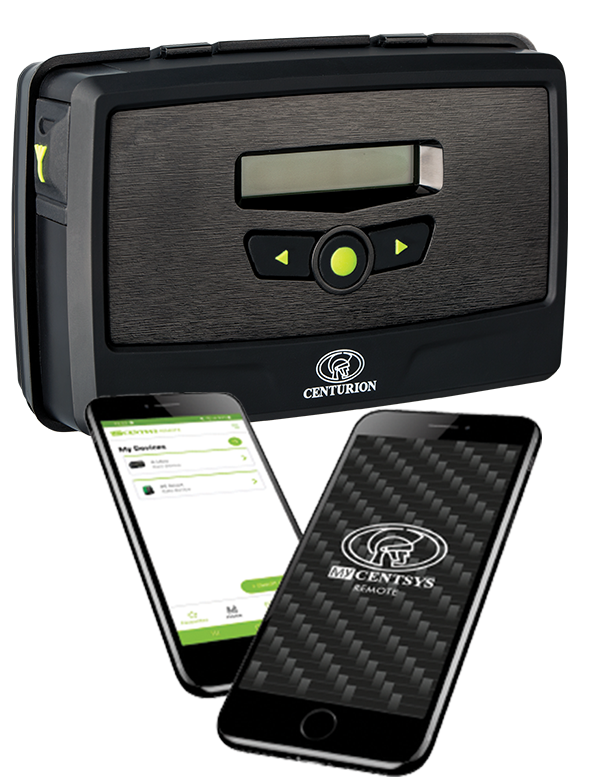

G-ULTRA GSM Device: The Ultimate Installer’s Solution for Access and Automation
The G-ULTRA GSM device is engineered to simplify installations, enhance system versatility, and provide powerful remote monitoring and control capabilities. With robust 4G technology, flexible configuration, and seamless integration into the SMΔRT Ecosystem, it delivers superior performance and reliability, making it the ultimate tool for professional installers.
Applications
The G-ULTRA GSM device is the ideal choice for a variety of access automation and security scenarios, including:
- Residential gate and garage door automation: Enable seamless access control for homes.
- Alarm systems: Enhance security monitoring and alerts for potential threats.
- Electric fencing: Provide additional perimeter security for properties.
- Household automation: Manage lighting, water pumps, and irrigation systems efficiently.
Why Installers Trust the G-ULTRA
Effortless Setup and Configuration
- User-Friendly Onboard Interface: Simplifies installation with clear prompts and step-by-step guidance.
- Integrated Mobile App and Website: Streamline configuration and adjustments with intuitive tools.
- Time-Saving Design: Reduces project timelines while ensuring optimal setup with minimal effort.
Advanced Channel Functionality
- Four Onboard Bidirectional Channels: Individually configurable as inputs for monitoring or outputs for activation, ensuring ultimate flexibility.
- Two Additional Onboard Channels: Dedicated for advanced control of connected systems, giving installers a versatile tool for complex setups.
Real-Time Monitoring and Control
- Monitor Device Status: User can check gate, garage door, and system performance remotely via the MyCentsys Remote App.
- Remote Activation: Ability for users to operate gates, alarms, and other connected devices from anywhere, offering unmatched convenience.
- Custom Notifications: Configure specific alerts for security breaches, device malfunctions, and other critical activities.
Why Installers Trust the G-ULTRA
Enhanced Capabilities for Every Installation
The G-ULTRA provides installers with the ability to offer tailored solutions using:
- 1500 Access Numbers
- 5000 Event Logs for diagnostics and historical analysis.
- 20 Access Profiles for advanced user management.
- Customisable Messaging:
- 1 Custom Welcome SMS for new access numbers.
- 20 Output Activation SMS Messages (from user to device).
- 30 Input Notification Messages (from device to user)
- Time-Barred Access and Activation:
- 100 Visitor Time-Barring Windows (timeframes between two dates).
- 30 Recurring Time-Barring Windows (weekly schedules).
- 10 Output Activation Schedules (recurring weekly).
- Daylight Saving Adjustments: Configurable for up to 3 periods.
- Input to Output Mapping Configurations: Supports 4 unique mappings for customized system behaviour.
Mechanical Setup & Installation
- Quick access to mounting hardware and an effortless height-adjustment mechanism simplify the installation process.
- A dedicated ancillary tray keeps accessories and cabling neatly organised for a professional finish.
- The pre-filled oil gearbox ensures long-lasting, reliable performance
Safety Made Easy
The D3 SMΔRT is compatible with Photon SMΔRT fully-wireless safety beams, providing dependable protection with a sleek, cable-free design.
Important Notice
NB: Not suitable for use with steel rack.
- Comes standard with 1 x 7.2Ah 12V sealed lead-acid battery. Lithium-ion batteries are not suitable for use with this product. Battery capacity can be increased for longer standby times.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| Technical Specifications | D3 SMΔRT | |
|---|---|---|
| Input voltage(1) | 110V - 240V AC 50/60Hz (1) | |
| Current consumption (mains) | 320mA peak | |
| Dx12V Battery charger current output | 1.8A @ 14.3V +/- 5% (28W) | |
| Maximum number of operations per day | 20 (3,6) | |
| Duty cycle - Mains present (2,3) | 25% | |
| Motor power supply | Battery-driven (Standard Capacity - 1x12V) | |
| Current consumption (motor at rated load) | 11A |
This equipment is compliant with the radiated emissions requirements of EN 55032 / CISPR 32 for Class B devices, which intends to offer adequate protection to broadcast services within the residential environment.
| Technical Specifications Continued | D3 SMΔRT | |
|---|---|---|
| Fuse Protection | Type | Rating | |
| Main Control Card | Serviceable | 35A | |
| Aux. Supply | Resetable Fuse | 12V 300mA MAX (10sec Pulse) | |
| Charger (Mains Supply) | Non-serviceable | 3A slow-blow | |
| Motor push force - starting | 18kgf | |
| Motor push force - rated | 12kgf | |
| Gate mass - maximum | 300kg | |
| Gate speed (varies with load) (4) | Maximum: Up to 24m/min Rated: Up to 21m/min | |
| Manual Override | Lockable with key release | |
| Operations whilst in Battery backup mode with 7.2Ah Battery | Operating Mode | |
| Up to 24m/min 7kgf | Up to 24m/min 12kgf | ||
| Half day (5,6,8) | 90 | 80 | |
| Full day (5,6,8) | 70 | 65 | |
| Collision Sensing | Electronic | |
| Operating temperature range | -15°C to +50°C | |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity | 32 Remotes (7) | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP55 | |
| Mass of unit packed (with standard kit, but excl. Rack and Battery) | 6.7kg | |
| Packaging dimensions (with standard kit, but excl. Rack and Battery) | 325mm wide x 245mm deep x 395mm high |
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase Battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
8. Dependant on the type and condition of the Battery
PERFECT YOUR SMΔRT SYSTEM

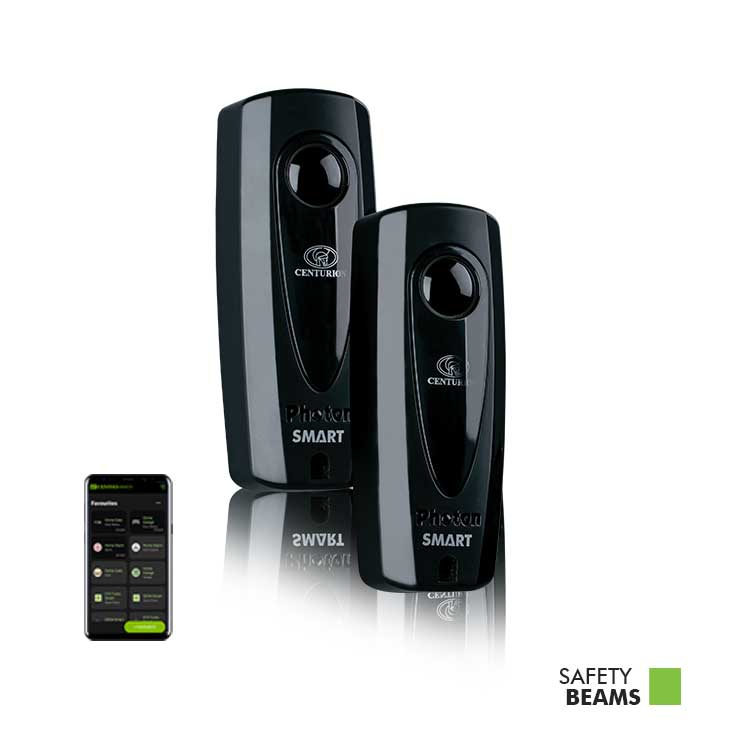

INFRARED SAFETY BEAMS

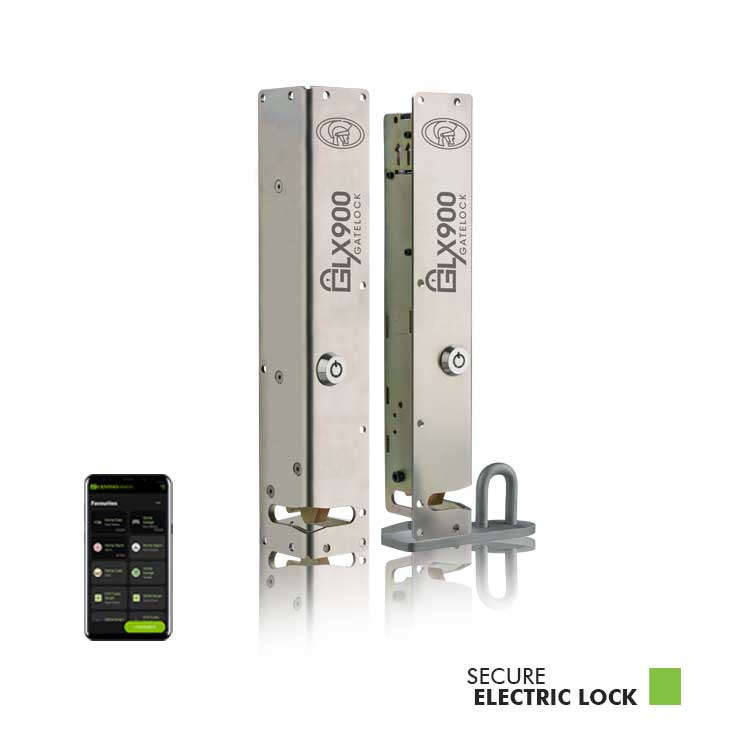

SECURE YOUR ENTRANCE

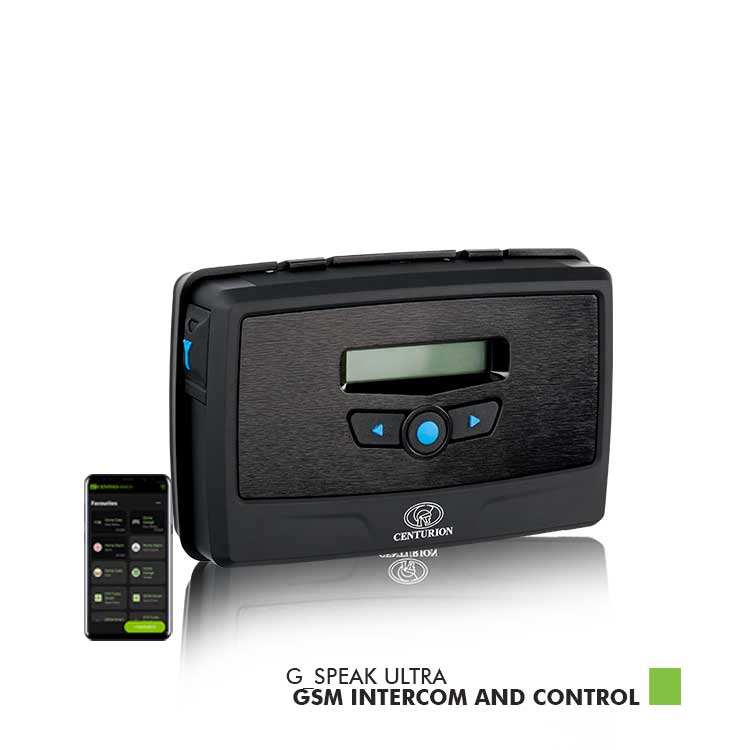

GSM INTERCOM/CONTROL
