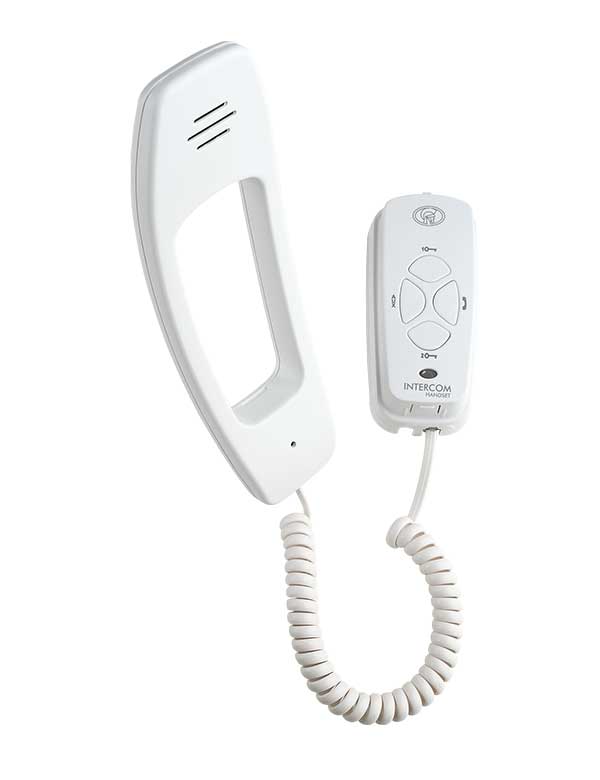

INTERCOM HANDSET

Operating Voltage
Volume Control
The CENTURION Intercom System:
Effortless Installation with Just Two Wires
The award-winning CENTURION Intercom System utilises a simple two-wire setup, making installation quick and easy, even in challenging environments. This efficient design reduces installation time while maintaining reliable, high-quality communication.
Application: Domestic/Small Commercial. Can be used for intercommunication functionality, as well as to trigger gate/garage door.
Scalable and Versatile
Designed for flexibility, the system can be expanded to include up to five components and up to two entry panels, providing installers with a solution that scales with client needs, whether for a single home or a small commercial setup.
Dual Call Button Modes
Each entry panel has two call buttons, offering installers the flexibility to configure single or dual Call Button Modes, which allows for separate or joint calling as the system grows or users’ needs change.
Robust Features for Complete Control
The intercom system includes essential features, such as gate release functions, auxiliary control buttons, and intercommunication between two handset groups, ensuring the installer can meet a range of user requirements.
Battery Backup and Lightning Protection
Operating on 12V DC, the intercom system can connect to a backup battery, ensuring operation during power failures. Additionally, built-in lightning protection makes for a resilient and reliable installation that performs well, even in adverse conditions.

Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.

TECHNICAL SPECIFICATIONS | DESCRIPTION |
---|---|
Input Voltage 1 | 12V – 14V DC supplied at anyone of the components 1 |
Current Draw | Quiescent – 150mA ±60mA for a One-to-One kit maximum – 200mA |
Speech Volume | Adjustable at each Entry Panel and handset |
Wiring | Two common wires polarised for speech, call and lock release |
Ring tone | Electronic while button is depressed with separate tones when calling from each Entry Panel in a system or between groups of handsets |
Call Confirmation at Entry Panel | 1 |
Wiring Distance | Refer to thickness chart in the Manual |
Gate/Door Release | Potential-free normally-open contact |
Handset Auxiliary Contact | Requires separate wiring via two-wire bus |
Operating Temperature | -20°C to +50°C |
Humidity | 0 – 90% (non-condensing) |
Degree of Protection | IP55 |
Surge Protection | 1 |
Packaging Dimensions | |
Handset | Length: 70mm x Width: 47mm x Height: 211mm |
Entry Panel | Length: 70mm x Width: 40mm x Height: 150mm |
[*] – If the 12V DC gate motor supply dips when the motor starts up and the intercom is being used at the same time, the speech quality might be affected.
