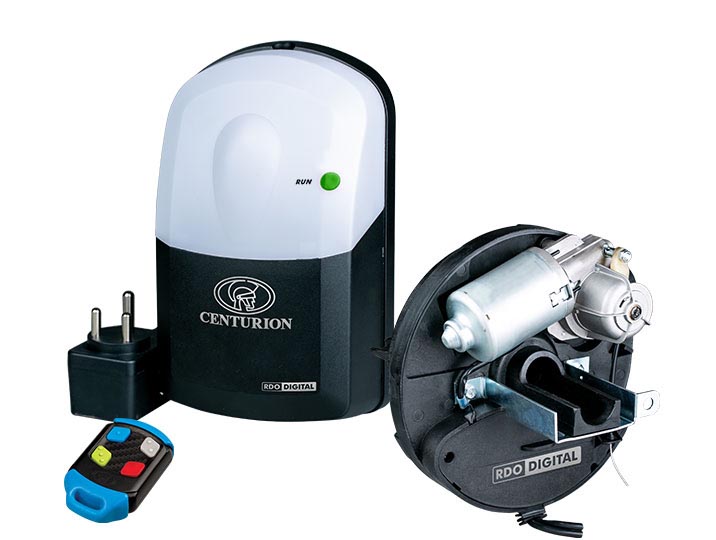

RDO DIGITAL Garage Door Operator
The RDO DIGITAL is the ultimate installer-friendly roll-up garage door operator, combining innovative technology with simplified setup to save you time and effort on every job.
With advanced features like digital limits, a user-friendly 7-segment display, and robust construction, this operator is engineered to make installations faster and more reliable.
Application: Domestic Roll-Up Garage Doors
Why Choose the RDO DIGITAL?
Simplified Setup with Digital Limits
Say goodbye to manual adjustments. The RDO DIGITAL’s digital limit system allows you to program the operator directly from the controller, making commissioning quick and hassle-free. This means faster installations for every project.
7-Segment Display for Easy Configuration
The built-in 7-segment display further simplifies commissioning and configuration. This interface ensures installers can efficiently program the system without delays or confusion.
Durable and Reliable Design
Built with high-quality materials, the RDO DIGITAL is designed to withstand daily use and deliver long-lasting performance. Its robust construction ensures reliability for your clients, even in demanding environments.
Key Features Installers & Their Clients Will Love
- Battery-Driven Technology: Ensures uninterrupted operation during power outages with two 1.3Ah 12V batteries, making it a powerful – and dependable – 24V system
- Built-In LED Courtesy Light: Automatically illuminates the garage during operation, providing added convenience and safety.
- Safety Obstruction Force System: Automatically adjusts for optimal safety and includes adjustable offset for customisation.
- Compact Design: Fits neatly into roll-up door systems with minimal footprint, making it ideal for all installations.
- Versatile Compatibility: Designed for roll-up doors up to 10m² in size, with a maximum door width of 2.8m and a lifting capacity of 20kg.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| Technical Specifications | RDO DIGITAL | |
|---|---|---|
| Input Voltage | 220 - 240V +/- 10%, 50Hz 1 | |
| Motor Voltage | 24V DC | |
| Motor Power Supply | Battery-driven - 200mA Charger - Peak | |
| Opener Lifting Force | 30kgf | |
| Door Travel Speed | 100 - 150mm/sec | |
| Duty Cycle - Mains Present 3 | 20%4 | |
| Daily Operations - Max | 20 | |
| Maximum Door Size | 6m² - (max width 2.8m) | |
| Onboard Receiver Specification | CENTURION code-hopping, 433MHz, capacity - 36 transmitter buttons 5 |
1. Can operate off a solar supply, consult Centurion Systems for assistance.
2. 2 x 1.2A/H batteies (can be upgraded for longer power failure autonomy).
3. Based on a pull force of less than 50% of rated.
4. Based on 25°c ambient temperature.
5. Only 1 button per transmitter is used.
