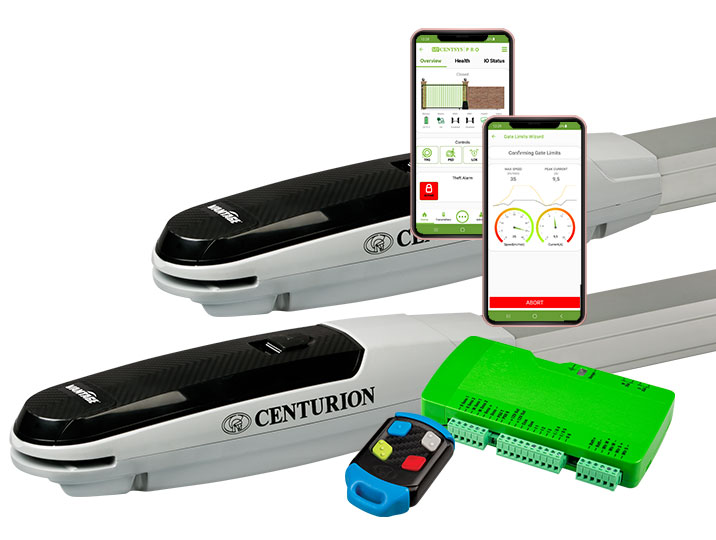

VANTAGE SMΔRT Swing Gate Operator: Simplifying Installations
The VANTAGE SMΔRT swing gate operator delivers a seamless combination of advanced technology, robust durability, and effortless setup.
Designed to make every installation faster and more efficient, this operator provides intuitive tools and cutting-edge features to ensure a professional finish with minimal effort.
From rugged construction to intelligent diagnostics, the VANTAGE SMΔRT offers the perfect blend of convenience and reliability for installers.
The VANTAGE SMΔRT is available in three powerful models, with actuator strokes of 300mm, 400mm, and 500mm, respectively, making it the perfect solution for most domestic and commercial applications.
Applications: Domestic (V300) / Commercial (V400 and V500)
What Sets the VANTAGE SMΔRT Apart?
Rugged Design for Reliable Performance
- Marine-Grade Construction: The split aluminium housing is made from high-grade marine-suitable aluminium with dual seals and integrated drainage to ensure outstanding water resistance and durability
- Reinforced Piston: The stainless-steel piston with self-lubricating components delivers long-lasting reliability, outperforming traditional designs
- Aircraft-Grade Anodised Tube: Constructed from 6061 T6 aluminium, the tube resists oxidation and wear, ensuring years of smooth operation
Wireless Safety Beams
Pair the VANTAGE SMΔRT with Photon SMΔRT fully-wireless safety beams for a sleek, cable-free safety solution. These beams ensure superior protection without compromising aesthetics.
Built to Last
The VANTAGE SMΔRT is engineered to perform, even in harsh conditions:
- Anti-Fatigue Cable Harness: With strain relief and superior reliability, the cable harness ensures durability and extended operational life.
- Advanced Gearbox Design: A three-stage planetary gearbox delivers high torque and robust reliability.
Flexible Channels
Each VANTAGE SMΔRT operator comes standard with the following onboard IO:
- 3 x set inputs
- 1 x input/1 x low-current output (configurable)
- 1 x input/1 x high-current output (configurable)
- 1 x set high-current output
End-User Peace of Mind
Easily reinforce your installation with the GLX900 electric gate lock, boasting 900kg break-in resistance and locking the gate securely in place to prevent forced opening from either direction. The VANTAGE SMΔRT also boasts an integrated tamper alarm, and is fully-compatible with the SMΔRT Siren, which blasts a commanding 110dB high-peak sound for extra tamper detection and deterrence.
Revolutionising the Installer Experience
Get MyCentsys PRO App
Simplify installations, enhance efficiency, and stay in control with the MyCentsys Pro app—your go-to tool for effortless configuration, diagnostics, and system management.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| TECHNICAL DATA | VANTAGE SMΔRT | |
|---|---|---|
| Input Voltage | 90V - 240V AC +/- 10%, 50/60Hz 1 | |
| Motor Voltage | 12V DC | |
| Motor Power Supply | Battery-driven 2 1.8A Charger | |
| Push Force - Max | 250kgf | |
| Typical Gate Opening Time | V400 (short stroke) 14.3 sec / V500 (long stroke) 17.8 sec (V500) | |
| Duty Cycle - Mains Present | 50% 3 | |
| Daily Operations - Max | 250 | |
| Maximum Leaf Width for Corresponding Gate Mass (90° opening) 4 | V400 ,2.5m = 500kg <4m = 150kg V500 ,2.5m = 750kg <4m = 230kg | |
| Onboard Receiver Specification | CENTURION code-hopping, multichannel, 433MHz, Capacity - 65 transmitter buttons |
1. Can operate off a solar supply, consult Centurion Systems for assistance.
2. 7Ah battery (can be upgraded for longer power failure autonomy).
3. Based on 25°c ambient temperature and unit not in direct sunlight.
4. An electric lock must be fitted to gate leaves 2.5m and over to secure gate in closed position.
