D10 SMΔRT
Metres per Minute
Max Gate Weight (Kg)
Life Cycle
Remotes Storage

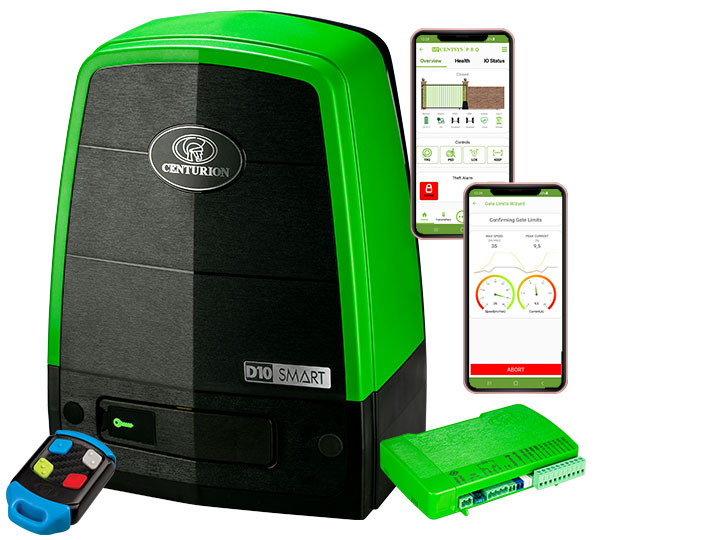

D10 SMΔRT Sliding Gate Operator: Built for High-Volume Performance
The D10 SMΔRT sliding gate operator is purpose-built for high-volume applications, offering unmatched reliability and advanced technology to meet the demands of commercial and industrial environments.
Designed to handle gates weighing up to 1000kg, rated for up to 750 daily operations and with a maximum speed of 26m/minute (varies with load), it delivers consistent, powerful performance day in and day out.
Application: Commercial/Industrial
What Sets the D10 SMΔRT Apart?
Engineered for High-Volume Applications
Perfect for commercial and industrial sites, the D10 SMΔRT is rated for up to 750 daily operations, ensuring dependable performance even in demanding environments.
Designed for Medium to Heavy Gates
With a capacity for gates up to 1,000kg, this operator provides robust functionality for a wide range of applications.
Durable Gearbox Design
The aluminium die-cast gearbox with nylon dressing, along with a 17-tooth steel pinion, is designed for heavy loads, ensuring long-lasting durability even in high-demand environments.
Mechanical Setup & Installation
- Quick access to mounting hardware and an effortless height-adjustment mechanism simplify the installation process.
- A dedicated ancillary tray keeps accessories and cabling neatly organised for a professional finish.
- The pre-filled oil gearbox ensures long-lasting, reliable performance
Comprehensive Security Features
The D10 SMΔRT sliding gate operator offers unparalleled security for your clients with:
- A built-in tamper alarm for extra peace of mind
- Compatibility with the SMΔRT siren allows for enhanced protection against unauthorised access
- New and improved theft-deterrent cage, featuring three additional support brackets for secure anchoring, ensures stronger deterrence against theft
- Simple integration with GLX900 electric gate lock, boasting 900kg break-in resistance – securely locks the gate in place and prevents forced opening from either direction
Enhanced Safety
Compatible with Photon SMΔRT fully-wireless safety beams, delivering advanced safety features with a neat, cable-free installation.
Flexible Channels (IO)
The D10 SMΔRT controller boasts six configurable channels, with four individually configurable as either inputs or low-current outputs, and two that can be set as either inputs or high-current outputs.
Higher Battery Capacity
Comes equipped with 2 x 7.2Ah 12V batteries1,2, making it a powerful 24V system, and delivering a higher pull force, extended battery life and longer battery backup, ensuring uninterrupted operation even during power outages.
SMΔRT PowerPack Compatible
The game-changing SMΔRT PowerPack is the perfect power solution for those busy sites with heavy traffic volumes, as well as being a great fit for installations where the power grid is stable, with the capability of running a rated gate directly from mains, and the added security, flexibility and peace of mind of battery backup.
Built for Demanding Environments
The D10 SMΔRT features an aluminium die-cast gearbox with nylon dressing, ensuring durability and long-lasting performance. The gearbox is also sealed and pre-filled with oil, reducing maintenance needs and ensuring smooth operation over time.
Important Notice
- Batteries are sealed lead-acid. Lithium-ion batteries are not suitable for use with this product
- Battery capacity can be increased for longer standby times
The D10 SMΔRT sliding gate operator is the ideal choice for sites requiring high-volume operations and dependable performance. Install with confidence, knowing you’re offering your clients a solution designed to perform at its best every time.
Revolutionising the Installer Experience
Get MyCentsys PRO App
Simplify installations, enhance efficiency, and stay in control with the MyCentsys Pro app—your go-to tool for effortless configuration, diagnostics, and system management.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| Technical Specifications | D10 SMΔRT | D10 TURBO SMΔRT | |
|---|---|---|---|
| Input voltage | 90V - 240V AC +/-10% @ 50Hz 1 | 90V - 240V AC +/-10% @ 50Hz1 | |
| Current consumption (Mains) | 250mA | 250mA | |
| Battery charger current output | 1.8A @ 27.4V +/-1% | 1.8A @ 27.4V +/-1% | |
| Maximum number of operations per day | 750 3, 6 | 750 3, 6 | |
| Duty cycle - Mains present2, 3 | 45% | 25% | |
| Motor voltage | 24V DC | 24V DC | |
| Motor power supply | Battery-driven (Standard Capacity - 2x 12V 7.2Ah) | Battery-driven (Standard Capacity - 2x 12V 7.2Ah) | |
| Current consumption (motor at rated load) | 8A | 10A | |
| Input / Output sink currents (Max accessory current draw) | |||
| I/O 1-4 | 100mA (24V) | 100mA (24V) | |
| I/O 5 and 6 | 3A (24V) 10sec Pulse | 3A (24V) 10sec Pulse | |
| Motor push force - starting | 40Kgf | 24Kgf | |
| Motor push force - rated | 30Kgf | 18kgf | |
| Gate mass - maximum | 1000Kg | 250kg8 | |
| Gate length - maximum | 50m | 50m | |
| Gate speed (varies with load)4 | Up to 26m/min4 | Up to 45m/min8 | |
| Manual Override | Lockable with key release | Lockable with key release | |
| Drive Pinion | 17T Module 4 | 20T Module 4 | |
| Operations in standby with 2x 7Ah batteries | Power saving (15m/min 15kgf) Normal (26m/min 15kgf) | Power saving (15m/min 9kgf) Normal (45m/min 9kgf) | |
| Half day2, 5, 6 | 118 | 63 | 189 | 130 | |
| Full day2, 5, 6 | 93 | 50 | 150 | 104 | |
| Collision Sensing | Electronic | Electronic | |
| Operating temperature range | -15°C to +50°C | -15°C to +50°C | |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity | 1500 Remotes7 | 1500 Remotes7 | |
| Receiver frequency | 433.92MHz | 433.92MHz | |
| Degree of protection | IP54 | IP54 | |
| Mass of unit packed (with standard kit, but excl. rack and battery) | 13Kg | 13.5Kg | |
| Packaging dimensions (with standard kit, but excl. rack and battery) | 350mm wide x 282mm deep x 470mm high | 350mm wide x 282mm deep x 470mm high |
- Can operate off a solar supply, consult your local dealer for assistance
- Based on 25°C ambient temperature and unit not in direct sunlight
- Based on a motor push force of less than 50% of rated (Starting and Running forces)
- Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
- Can increase battery capacity for longer standby times
- Based on 4m gate, excluding all accessories
- Multiple buttons per remote can be used
- Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses
