D5-Evo
SMΔRT
Metres per Minute
Max Gate Weight (Kg)
Life Cycle
Remotes Storage

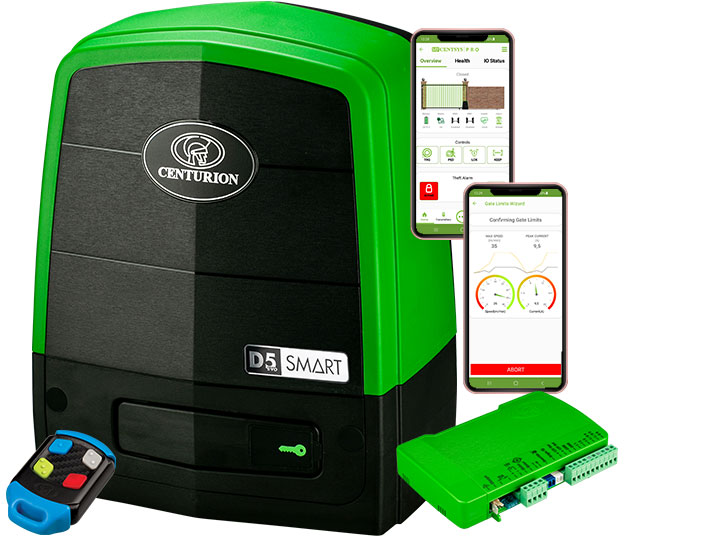

D5-Evo SMΔRT Sliding Gate Operator: Evolved for Excellence
The 12V1D5-Evo SMΔRT builds on the legacy of the original D5-Evo, combining tried, tested, and perfected technology with the latest innovations in access automation.
Designed for light-industrial and residential applications, this operator offers the perfect balance of power, speed, and reliability, making it the fastest gate operator in the 400kg-500kg class, with a maximum speed of 24m/minute (varies with load).
Application: Light-Industrial/Residential
What Sets the D5-Evo SMΔRT Apart?
Proven Legacy
Built on the foundation of the iconic D5-Evo, the SMΔRT edition retains all the qualities that made its predecessor a household name while introducing cutting-edge technology to elevate performance and functionality.
Fastest in its Class
The D5-Evo SMΔRT is the fastest gate operator for gates weighing between 400kg-500kg, ensuring quick and efficient operation for light-industrial and residential sites.
Mechanical Setup & Installation
- Quick access to mounting hardware and an effortless height-adjustment mechanism make an installation fast and straightforward
- A dedicated ancillary tray keeps cabling and accessories neatly organised for a professional finish
- The pre-filled oil gearbox ensures long-term reliability
Comprehensive Security Features
The D5-Evo SMΔRT sliding gate operator offers unparalleled security for your clients with:
-
- A built-in tamper alarm for extra peace of mind
- Compatibility with the SMΔRT siren allows for enhanced protection against unauthorised access
- New and improved theft-deterrent cage, featuring three additional support brackets for secure anchoring, ensures stronger deterrence against theft
- Simple integration with GLX900 electric gate lock – securely locks the gate in place and prevents forced opening from either direction
Enhanced Safety
Compatible with Photon SMΔRT fully-wireless safety beams, providing advanced safety in a sleek, cable-free design.
Flexible Channels (IO)
The D5-Evo SMΔRT controller boasts three inputs, two low-current outputs, and one high-current output, suited for a wide variety of applications and options for monitoring and control.
Important Notice
- Comes standard with 1 x 7.2Ah 12V sealed lead-acid battery. Lithium-ion batteries are not suitable for use with this product. Battery capacity can be increased for longer standby times.
Revolutionising the Installer Experience
Get MyCentsys PRO App
Simplify installations, enhance efficiency, and stay in control with the MyCentsys Pro app—your go-to tool for effortless configuration, diagnostics, and system management.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| Technical Specifications | D5-Evo SMΔRT | |
|---|---|---|
| Input voltage1 | 110V - 240V AC 50/60Hz1 | |
| Current consumption (mains) | 320mA peak | |
| Dx12V Battery charger current output | 1.8A @ 14.3V +/- 5% (28W) | |
| Maximum number of operations per day | 150 (3,6) | |
| Duty cycle - Mains present2 3 | 50% | |
| Motor power supply | Battery-driven (Standard Capacity - 1x12V) | |
| Current consumption (motor at rated load) | 15A | |
| Input / Output sink currents (Max. accessory current draw) | ||
| I/O 4 and I/O 5 | 100mA (12V) | |
| O6 | 3A (12V) 10sec Pulse | |
| Fuse Protection | Type | Rating | |
| Main Control Card | Serviceable | 35A | |
| Aux. Supply | Resettable Fuse | 12V 600mA (10sec Pulse) | |
| Charger (Mains Supply) | Non-serviceable | 3A slow-blow | |
| Motor push force - starting | 30kgf | |
| Motor push force - rated | 17kgf | |
| Gate mass - maximum | 500kg | |
| Gate length - maximum | 20m | |
| Gate speed (varies with load)4 | Maximum: Up to 24m/min Rated: Up to 19m/min | |
| Manual Override | Lockable with key release | |
| Operations whilst in Battery backup mode with 7.2Ah Battery | Operating Modes | Up to 24m/min 7kgf | Up to 18m/min 17kgf | |
| Half day5 6 8 | 90 | 44 | |
| Full day (5,6,8) | 70 | 35 | |
| Collision Sensing | Electronic | |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete | |
| Receiver code storage capacity | 1500 Remotes7 | |
| Receiver frequency | 433.92MHz | |
| Degree of protection | IP55 | |
| Mass of unit packed (with standard kit, but excl. Rack and Battery) | 7.1kg | |
| Packaging dimensions (with standard kit, but excl. Rack and Battery) | 325mm wide x 245mm deep x 395mm high |
This equipment is compliant with the radiated emissions requirements of EN 55032 / CISPR 32 for Class B devices, which intends to offer
adequate protection to broadcast services within the residential environment.
1. Can operate off a solar supply, consult your local dealer for assistance
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase Battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
8. Dependant on the type and condition of the Battery
