SOLAR REGULATOR

Max Battery Voltage
Max Circuit Voltage
Weight
System Voltage

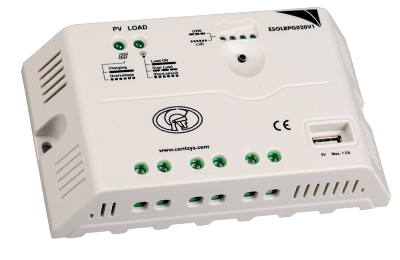

CENTURION Solar Regulator:
Reliable Power Management for Your Solar Setup
The CENTURION Solar Regulator is designed to optimise and protect your solar-powered gate automation system, ensuring efficient power delivery, extended battery life, and reliable operation. Whether you’re using solar power as a primary energy source or a backup solution, this intelligent regulator keeps your system running smoothly while safeguarding against overcharging, power surges, and electrical faults.
Applications:
- Remote or off-grid locations
- Uninterrupted operation during power outages
- Energy-efficient urban installation
- Environmentally-friendly security solutions
- Property entry points with high energy requirements
- Temporary installations
- Supplementing battery-driven systems
Common Access Automation Systems Benefiting from Solar Power:
- Sliding and swing gate motors
- Traffic barriers
- Garage door operators
- Intercom systems
- Safety devices, such as wireless beams
What Sets the CENTURION Solar Regulator Apart?
Maximises Battery Life & Performance
- PWM charging technology ensures a stable and efficient charge, preventing battery damage from overcharging or excessive discharge.
- Automatic voltage correction adjusts charging and discharging parameters to extend battery life.
Built-In Protection for Peace of Mind
- Protects against overcharging, over-discharging, short circuits, and overloads, ensuring the safety of your gate automation system.
- Reverse polarity protection prevents damage from incorrect wiring.
- Temperature compensation optimises battery performance in varying weather conditions.
User-Friendly LED Indicators
- Clear LED status indicators provide instant feedback on battery voltage, charging status, and system operation.
- Helps you monitor power levels at a glance, ensuring your system is always in peak condition.
Compact, Durable, and Weather-Resistant
- Sleek, space-saving design allows for easy installation in any solar-powered gate setup.
- IP30-rated enclosure provides protection against dust and environmental factors.
How Does the Solar Regulator Work?
- Connects between your solar panel, battery, and gate motor, regulating the voltage and ensuring efficient energy flow.
- Prevents power surges and ensures that your gate automation system operates reliably and efficiently.
The Perfect Addition to Your Solar-Powered Gate System
The CENTURION Solar Regulator is an essential component for anyone looking to maximise efficiency, protect their system, and ensure uninterrupted operation of their solar-powered gate motor.
Upgrade your solar access automation today with the CENTURION Solar Regulator!

Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.

Technical Specifications | Solar Regulator | |
---|---|---|
Nominal system voltage | 12-24V | |
Rated battery current | 20A | |
Max. battery voltage | 32V | |
Max. PV open circuit voltage | 50V | |
Self-consumption | ≤ 6mA | |
Equalize charging voltage | Gel: ----, Sealed: 14.6V, Flooded: 14.8V | |
Boost charging voltage | Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V | |
Float charging voltage | Gel / Sealed / Flooded: 13.8V | |
Low voltage reconnect voltage | Gel / Sealed / Flooded: 12.6V | |
Low voltage disconnect voltage | Gel / Sealed / Flooded: 11.1V | |
Charge circuit voltage drop | ≤ 0.26V | |
Discharge circuit voltage drop | ≤ 0.15V | |
Temp. compensation | -5mV / °C / 2V (ref) | |
Working temperature | -35°C - +55°C | |
Storage temperature | -35°C - +80°C | |
Humidity | ≤ 95% N.C |
