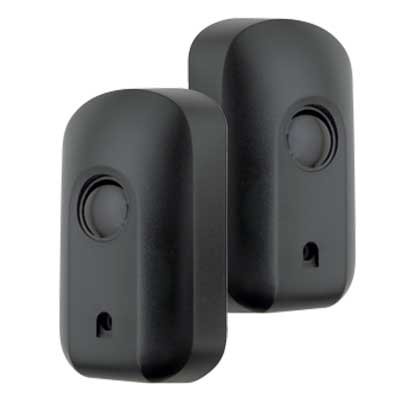

i5 Infrared Safety Beams: Reliable, Easy-to-Install Safety for Any Entrance
The i5 infrared safety beams bring simplicity and efficiency to gate and garage door safety.
Built for flexibility, these beams combine practical features with unwavering reliability, helping you achieve an effective and safe installation with ease.
Application: Gated entryways and garage entrances up to 40m in width
What Sets the i5 Beams Apart?
Effortless Alignment
A wide infrared beam paired with an onboard LED indicator ensures easy alignment, saving you time and effort during setup.
Flexible Input Voltage
With a broad input voltage range, the i5 beams adapt easily to various installation needs, giving you more flexibility on site.
Long-Distance Coverage
Designed to cover wide entrances, the i5 beams have a range of up to 40 meters, providing reliable protection for larger access points.
Enhanced Security with PIRAC Mode Compatibility
The i5 beams are compatible with PIRAC (Beam Autoclose) Mode, available on CENTURION sliding and swing gate motors. This advanced feature ensures maximum security by automatically closing the gate as soon as the safety beams detect that the user has cleared the entrance.
Disclaimer for Visitors Within South Africa
For your safety: Proper installation by a trained installer ensures this CENTURION product complies with SANS (SABS) standards and works as intended
Disclaimer for International Visitors
For your safety: This CENTURION product must be installed by a trained and qualified installer in accordance with the manufacturer’s instructions, as well as all laws, regulations and standards applicable in the country of installation.
Become a Trusted Professional
With specialised, in depth training in servicing, maintaining, installing and repairs of all SMΔRT Centurion Systems Motors.
| Technical Specifications | i5 DESCRIPTION |
|---|---|
| Power Supply | 12 - 24V DC/AC |
| Power Consumption Transmitter | 21mA |
| Receiver | 43mA @ 12V |
| Maximum Distance | 40m |
| Alignment | Automatic - 9m² @ 10m (parallel - circular area) |
| Output Contact Rating | 5A @ 220V AC (non-inductive) |
| Operating Temperature | -15°C to +55°C |
| Operating Humidity | 0% - 90% (non-condensing) |
| Degree of Protection | IP54 |
