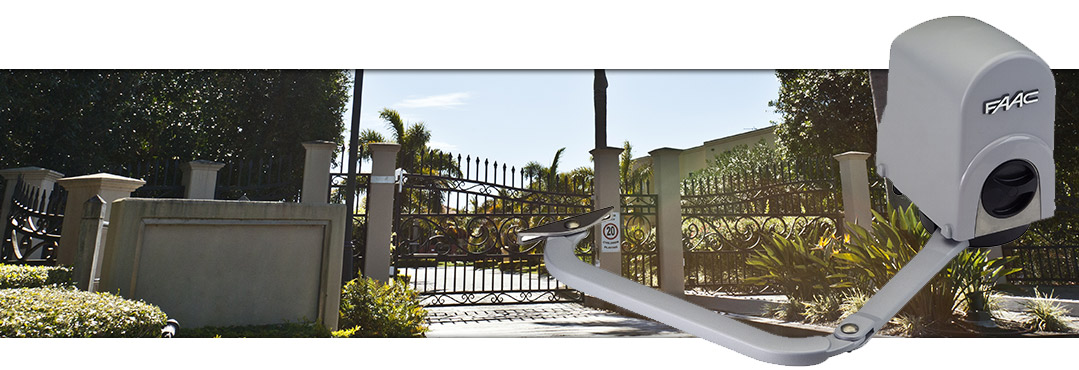

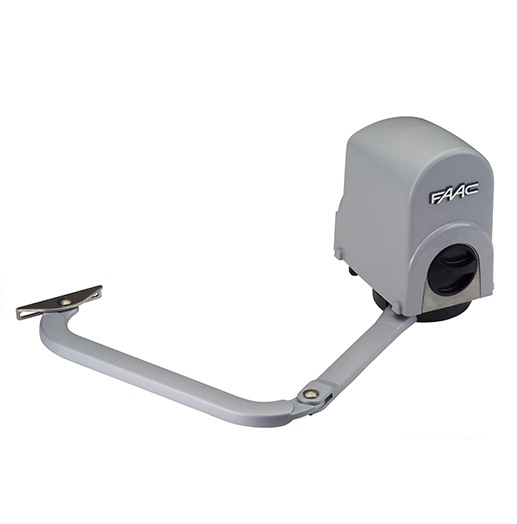

Electro-mechanical operator with articulated arm

Suitable for residential swing-leaf gates with a maximum single-leaf width of 2 m (2.5 m with an electric lock)

• Compact, elegant design. Width – the crucial overall dimension – is as little as 185 mm!
• Versatile, simple installation. The articulated arm allows high flexibility for the installation dimensions, allowing for use on large gate piers
• With the non-reversing Gearmotor, there is no need to install electro-mechanical closing devices. In the event of a power failure, the rotation of the (key-protected) release device alone, makes it possible to move the gate manually
• The system has non-reversing motors that hold the gates in the open and closed positions
• Built-in mechanical stops: no need to install opening and closing mechanical stops.
• New electronic control unit with an anti-crushing device and virtual encoder with reverse function upon detection of an obstacle
• Emergency battery to ensure operation in the event of a power failure (optional)

NEW
• Option to add BUS XIB interface for applications using NON BUS devices
• IMPORTANT: to ensure correct operation, make sure that the distance between the gate hinge and any walls or lateral fencing is greater than 725 mm

Model 391E 391
Power supply voltage 230 V ac /
Electric motor voltage 24 V dc 24 V dc
Absorbed power 120 W 110 W
Max. torque 250 Nm 250 Nm
Max. angular speed 13° sec 13° sec
Max. leaf length 1 2.5 m 2.5 m
Max. leaf weight 2 See graph A See graph A
Use frequency at 20 °C 1:25 1:25
Consecutive cycles at 20 °C 30 30
Protection class IP 44 IP 44
Operating ambient temperature -20 °C to +55 °C -20 °C to +55 °C
Weight 8.7 kg 7.0 kg
Dimensions (L x D x H) in mm 185 x 260 x 310 185 x 260 x 310

* For leaves with a length exceeding 2 m, an electric lock must be fitted.
** The weight of the leaf depends on its length. On graph A, check if your leaf is in the zone shown in the graph.
