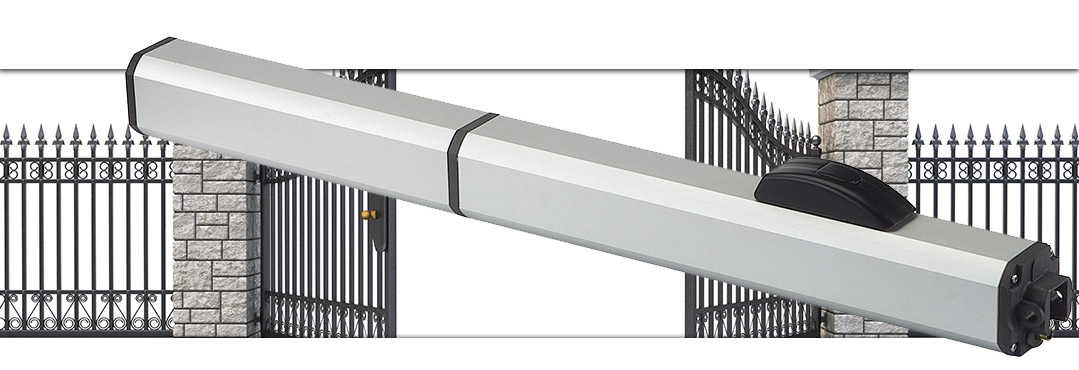

Hydraulic operator

Condominium and industrial swing-leaf gates

• Large, robust operator suitable for gate leafs up to 7m.
• Maximum anti-crushing safety thanks to an exclusive hydraulic device.
• In case of power cut, the rotation of the (key protected) release device above makes it
possible to open/close the gate manually.

400 SBS Long version with over 80% more torque than a standard
400 operator, ideal for more demanding applications.

Model 400 CBAC 400 SB 400 SBS
Power supply voltage 230 V ac (+6% -10%) 50 (60) Hz 230 V ac (+6% -10%) 50 (60) Hz 230 V ac (+6% -10%) 50 (60) Hz
Absorbed power 220 W 220 W 220 W
Absorbed current 1 A 1 A 1 A
Motor rotation speed 1400 r.p.m. 1400 r.p.m. 1400 r.p.m.
Rod extension speed 1 cm/s 1 cm/s 0.75 cm/s
Pump fl ow rate 1 l/min 1 l/min 0.75 l/min
Traction and thrust force 0 to 620 daN 0 to 620 daN 0 to 775 daN
Operating ambient temperature -20 °C to +55 °C -20 °C to +55 °C -20 °C to +55 °C
Thermal protection on motor winding 120 °C 120 °C 120 °C
Weight 8.6 kg 8.6 kg 8.6 kg
Type of oil FAAC HP OIL FAAC HP OIL FAAC HP OIL
Protection class IP 55 IP 55 IP 55
Dimensions (L x D x H) in mm 1,031 x 113 x 85 mm - long version 1,285 x 113 x 85 mm 1,031 x 113 x 85 mm - long version 1,285 x 113 x 85 mm 1,031 x 113 x 85 mm - long version 1,285 x 113 x 85 mm
