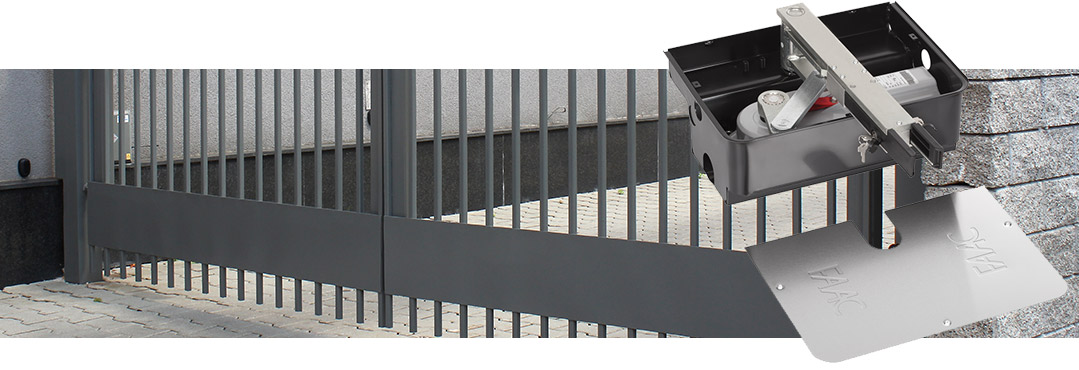

Underground electro-mechanical operator
Residential swing-leaf gates with a single-leaf length of 3.50 m
and maximum weight of 500 kg
• Discreet underground operator
• Access to the operator is possible without removing the leaf
• Protection class IP 67
• Electronic control unit with an anti-crushing device and virtual encoder with reverse function upon detection of an obstacle
• Emergency battery to ensure operation in case of a power failure (optional)
• Easy-to-use lever-style manual release, protected by the lock
New
• Option to add BUS XIB interface for applications using NON BUS devices.
| Model | 770N 24V | |
|---|---|---|
| Reduction ratio | 1:1418 | |
| Electric motor voltage | 24 Vdc | |
| Power supply voltage | 230 V ac | |
| Absorbed power | 70 W | |
| Absorbed current | 3 A | |
| Max traction thrust force | 300 Nm | |
| Angular speed | 6°/sec | |
| Type and frequency of use at 20 °C | 100% | |
| Leaf max. opening angle | 110° (140° and 180° with optional kit) | |
| Leaf max. length | 3.5 m (110°), 3 m (180° with optional opening kit), 2.5 m (140° with optional opening kit) | |
| Weight | 12.5kg (27.8kg with foundation box) | |
| Protection class | IP 67 | |
| Operator dimensions | 360x150x140 mm | |
| Operating ambient temperature | -20 °C to +55 °C | |
| Foundation box dimensions | 430 x 307.5 x 214 mm |
