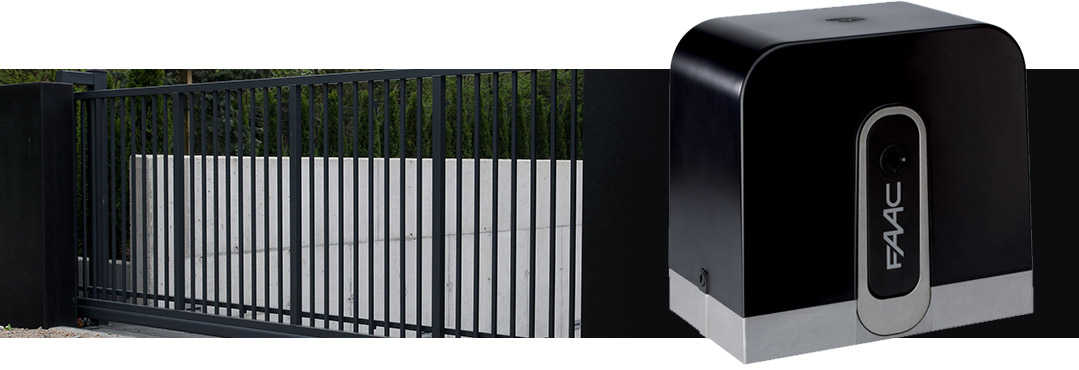

C720 – Low-voltage 24V gate motor
A NEW REDUCTION PRINCIPLE FOR GATE AUTOMATION
• New moving axes speed reduction principle (FAAC-patented)
• Very high mechanical efficiency (>80%)
• Integrated control board with an anti-crushing system and virtual encoder for inversion on obstacles
• Magnetic limit switches
• Residential use
• High mechanical efficiency:
>80% (+50% compared to traditional gearboxes).
• Vibration and noise reduction:
The impellers are 180° out of phase, making the gearbox perfectly symmetrical and balanced.
• Robustness and reliability:
The load is distributed to many contact points.

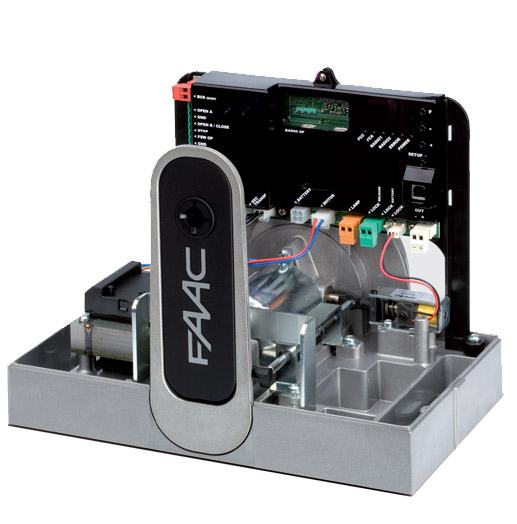

Integrated E720 electronic board with easy-to-configure LCD display:
• High level of programmability and adjustment of installation parameters
• Both traditional and bus photocells can be connected to the board
• 12 operating logic modes
| MODEL | C720 24V | |
|---|---|---|
| Power supply voltage | 220-240V~ 50/60 Hz | |
| Motor | Motor Brush motor 24V | |
| Max. power | 170 W | |
| Max. torque | 18 Nm | |
| Max. expressed force | 320 N | |
| Reduction ratio | 1:49 | |
| Max. leaf width | 15 m | |
| Leaf speed | 18 m/min | |
| Speed adjustment and motor control | Yes - electronic adjustment | |
| Limit switch | Magnetic | |
| Pinion | Z28 module 4 | |
| Encoder | Electronic encoder | |
| Force adjustment | Via electronic control board | |
| Operating ambient temperature | -20°C ÷ +55°C | |
| Protection class | IP44 | |
| Weight | 8 Kg | |
| Dimensions (LxDxH) | 300 x 180 x 280 mm | |
| Max. leaf weight | 400 Kg | |
| Use frequency | 100% | |
| Electronic equipment | Incorporated E721 |
