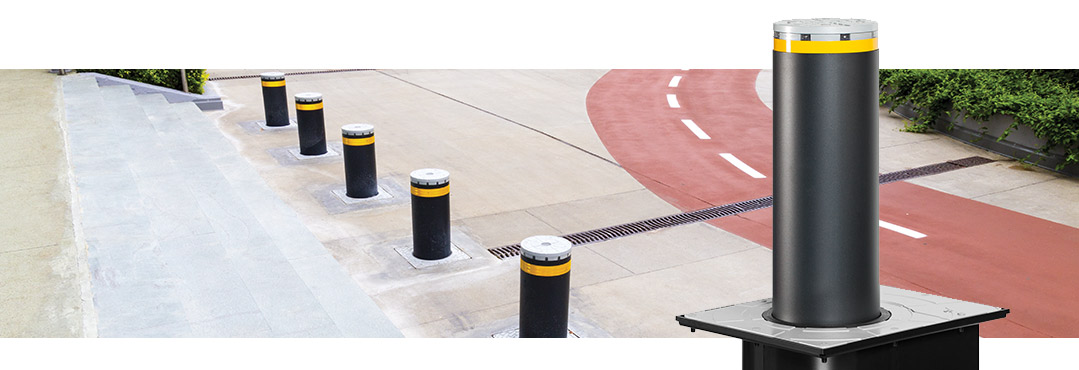

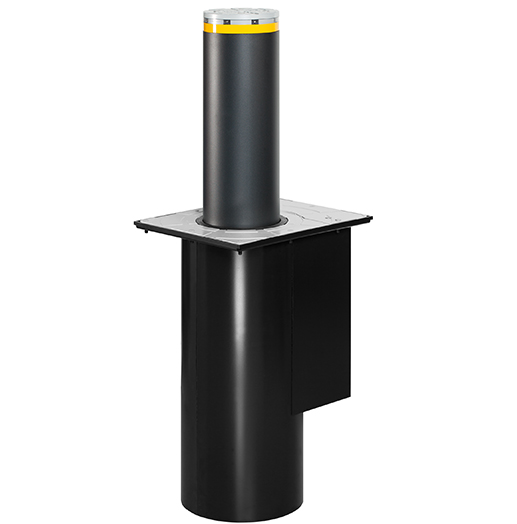

FAAC J200 Retractable bollards for access control
The traffic bollard FAAC Automatic J200HA is especially suitable for the regulation of traffic in residential areas, providing intelligent control, while minimising the aesthetic impact. The system can be activated using commands executed by authorised personnel or automatic commands at a predetermined time.
• Product design streamlined, configurable by selecting the desired installation accessories
• Ease of transport, storage and installation, thanks to the weight and content of the product
• Simplified maintenance (can be performed by one person)
| MODEL | J200 | |
|---|---|---|
| Handling | Hydraulic actuator | |
| Cylinder stroke | 600 mm | |
| Cylinder diameter | 200 mm | |
| Material cylinder version | Steel Fe 360 (6mm) | |
| Surface treatment of standard cylinder | Cataphoresis treatment and polyester powder paint RAL 7021 dark grey metallic | |
| Material special steel version | AISI 316 (5mm thick) | |
| The upper cylinder (head) | Aluminium RAL 9006 | |
| Rise time | Circa 5 sec | |
| Lowering time | Circa 7 sec | |
| Hydraulic pump power | 230V AC +6% - 10%; 50 Hz | |
| Absorption | 230 W | |
| Degree of protection | IP 56 | |
| Recommended use | Residential | |
| Standard reflective strip | Height 25 mm | |
| Manual lowering | Possible with mechanical release hydraulic circuit | |
| Total weight | 90Kg | |
| Operating temperature | -15 °C / +55 °C | |
| Operating temperature with heater (optional) | -25 °C / +55 °C | |
| dimensions | 400x500x800 mm | |
| Cable connection | Standard 16 +1 leads, minimum 1.5 mm (not supplied) | |
| Maximum length | 50 mt |
